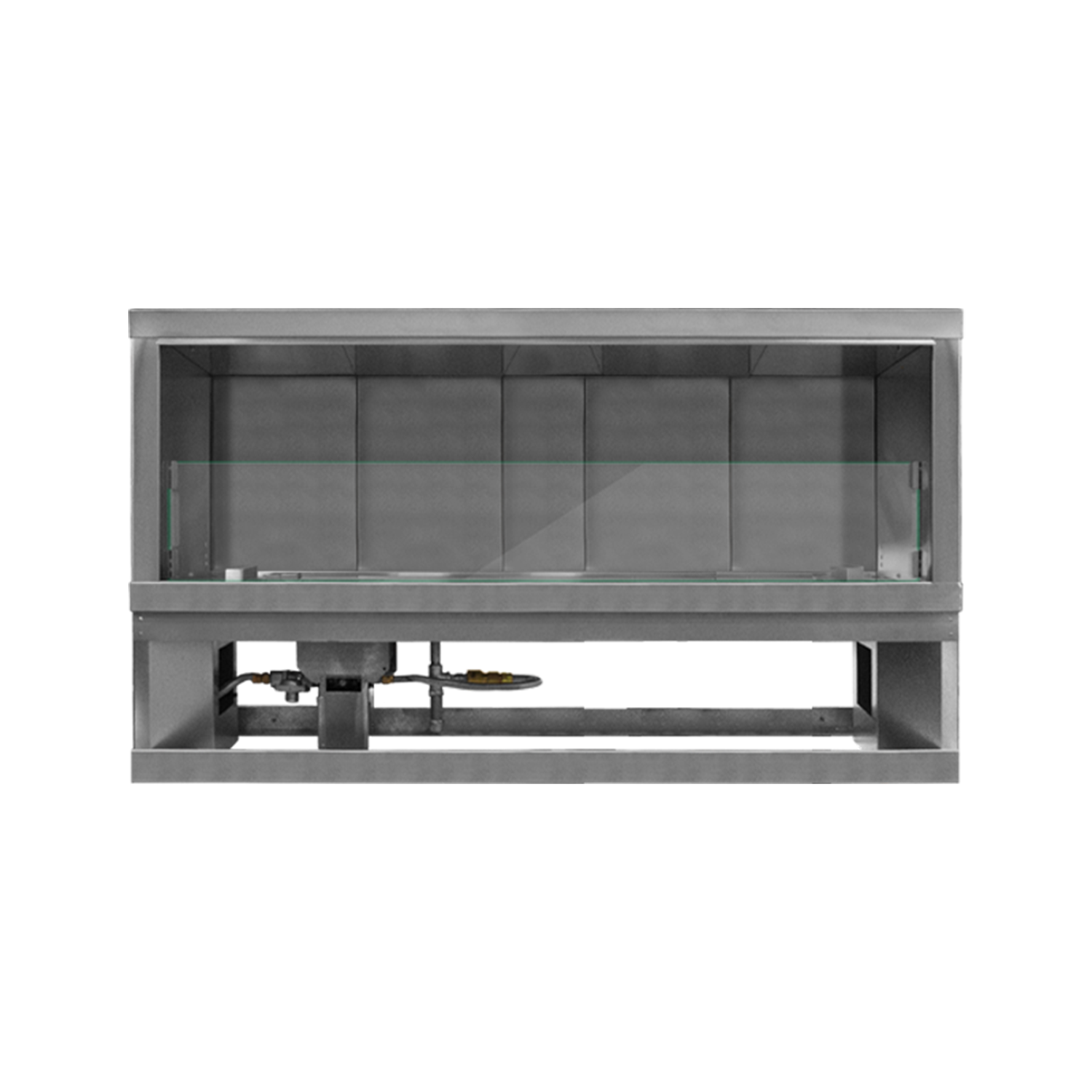

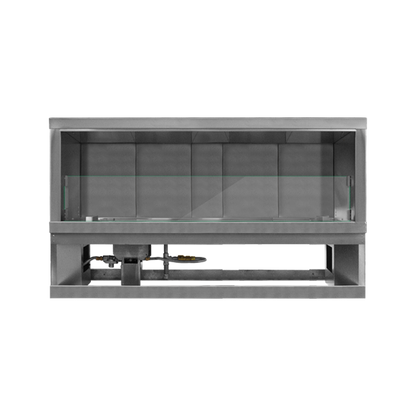

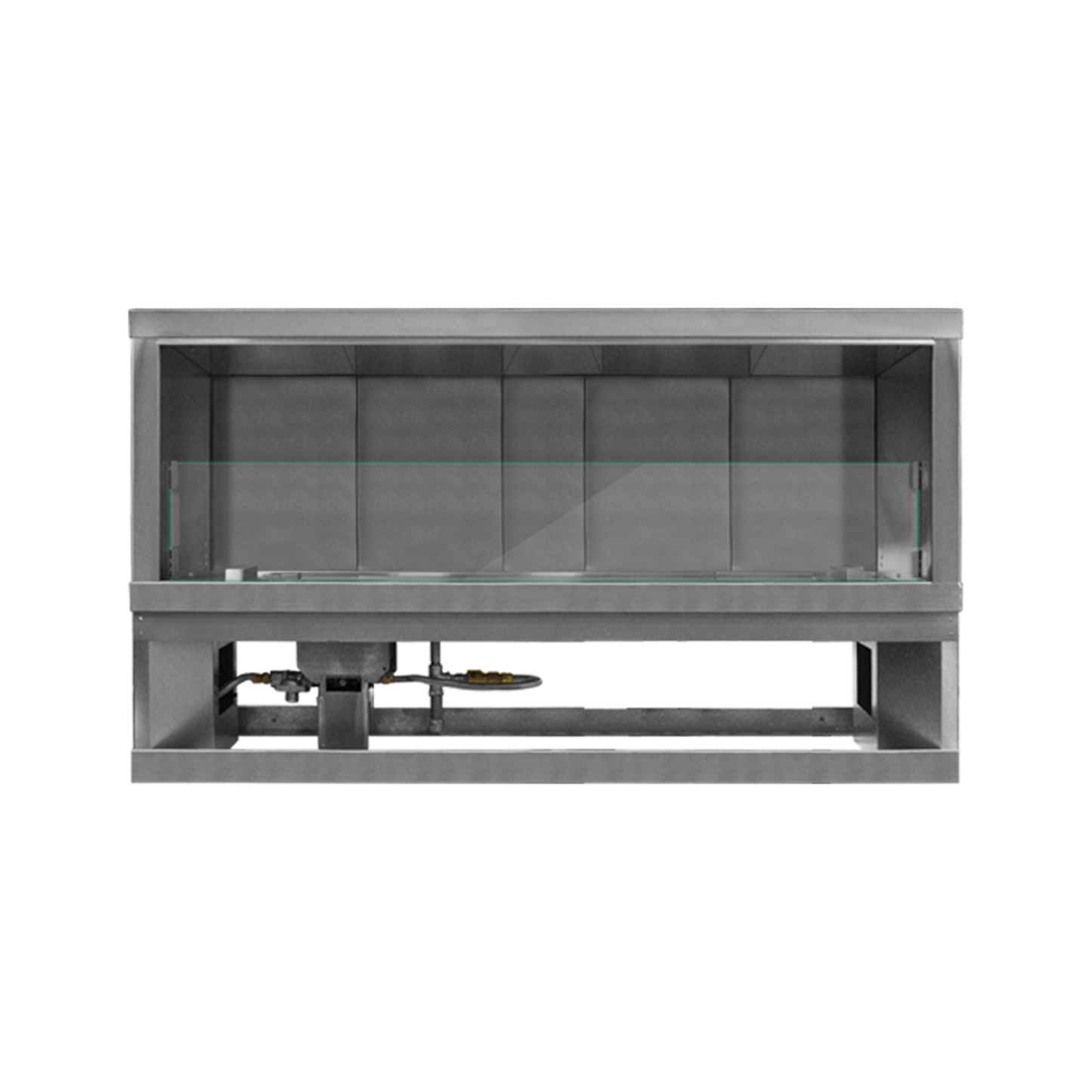

304 stainless steel firebox and burner, tempered glass wind guard
Gas Connection
1/2" flare, 46" flex line supplied
Clearances
6" to side walls, 46.5" to ceiling on single-sided models
Framing
Metal studs required. Wood studs are not permitted
Electrical

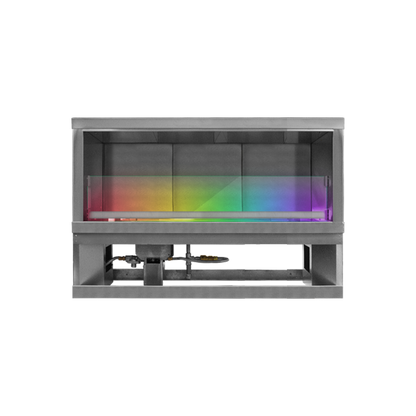

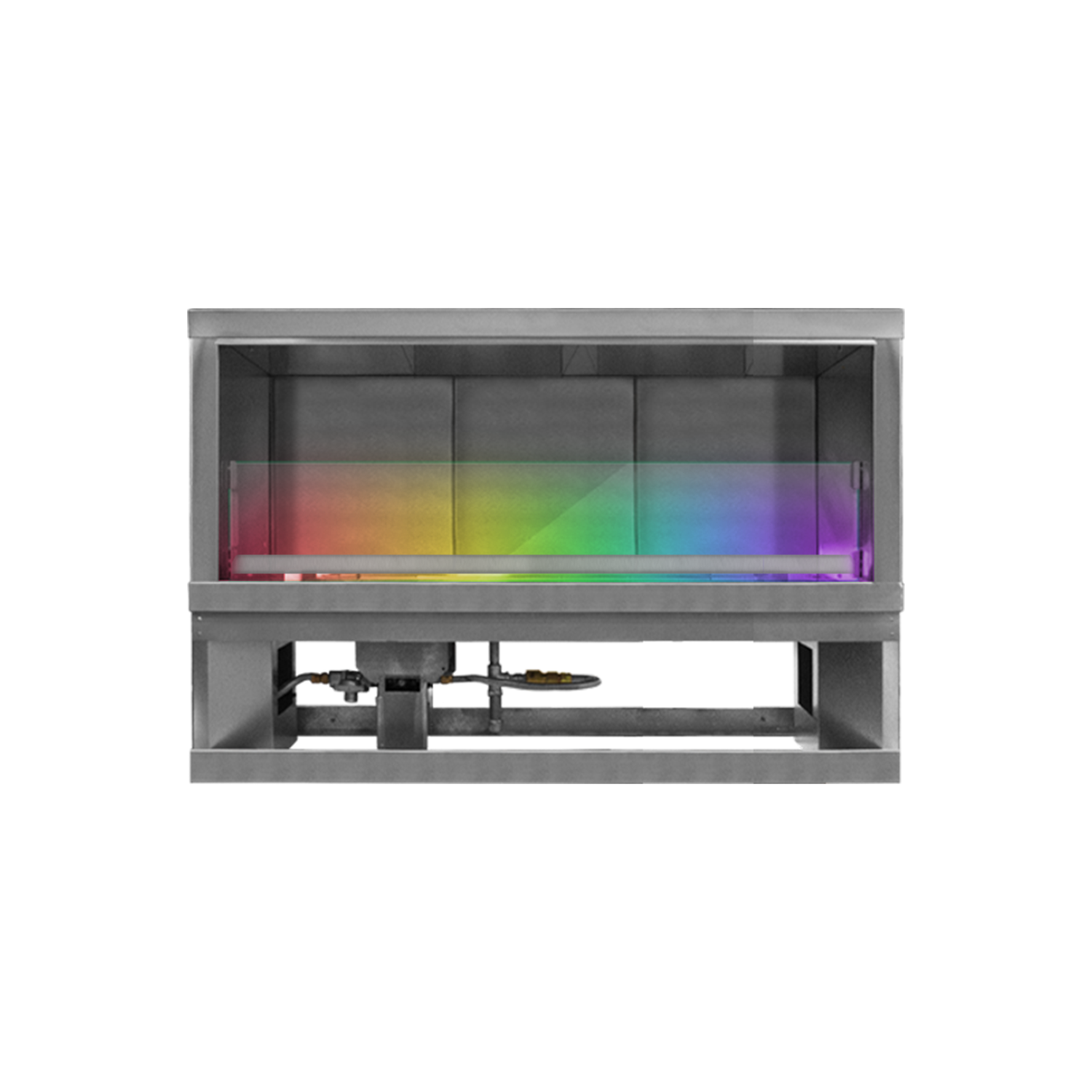

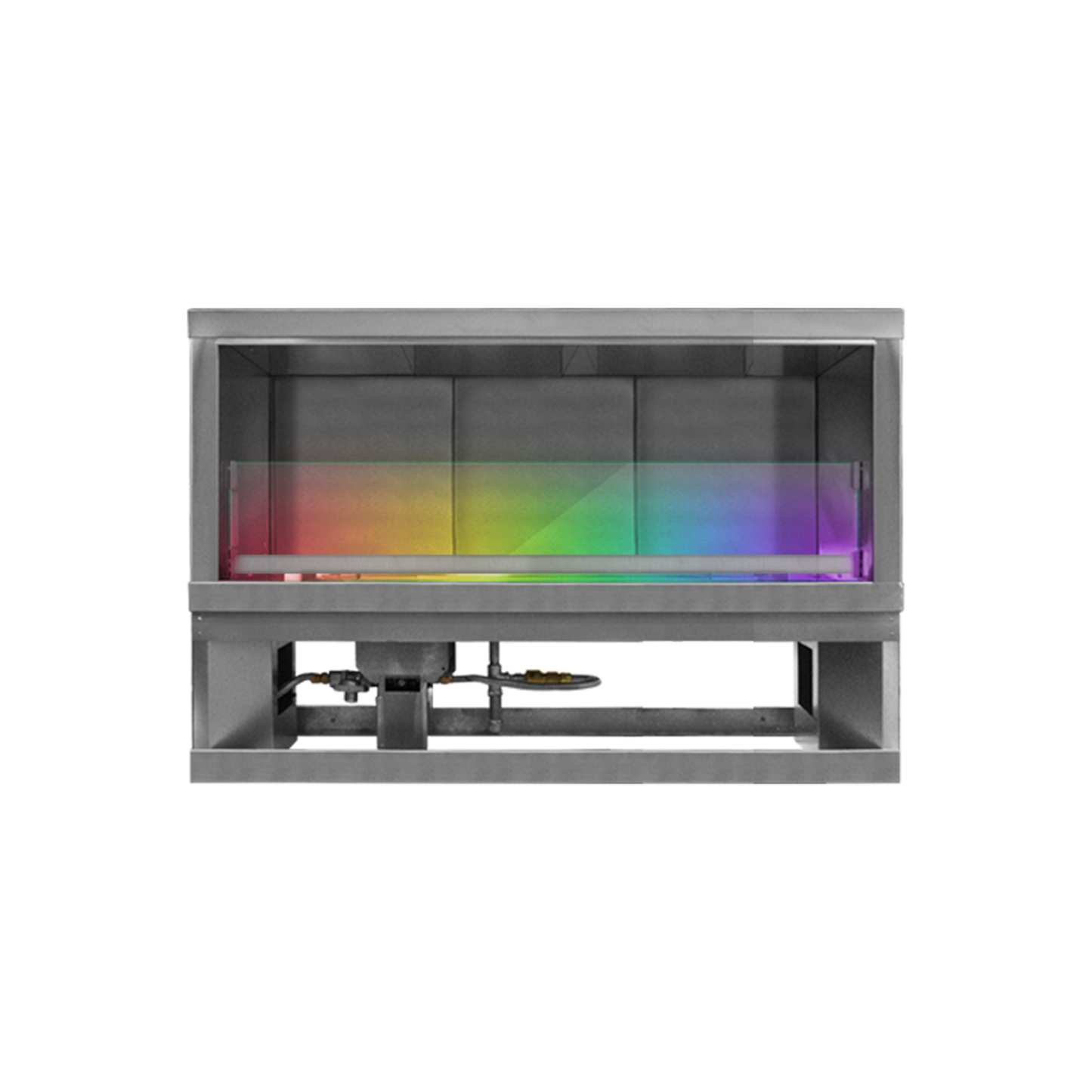

Standard models run on four C batteries. LED models need 120V
Fire Glass Needed
15 lbs (36"), 20 lbs (48"), 25 lbs (60" and 72")
Certification
ANSI Z21.97 / CSA 2.41, listed 0 to 4,500 ft
Figures published by Firegear. Confirm any dimension you are building to, or sizing a gas line from, against the installation manual for your exact model.
Published by Firegear. Opens in a new tab as a PDF.
Propane not available on this build. Firegear lists this burner and ignition combination in natural gas only. Switch the burner or the ignition to unlock propane, or contact us for the LP conversion kit.
Covers the burner pan. Lava rock for a natural look, fire glass for reflection.
Remotes need AWS electronic ignition. Timers and shut-offs close the gas automatically, often required by commercial code.
