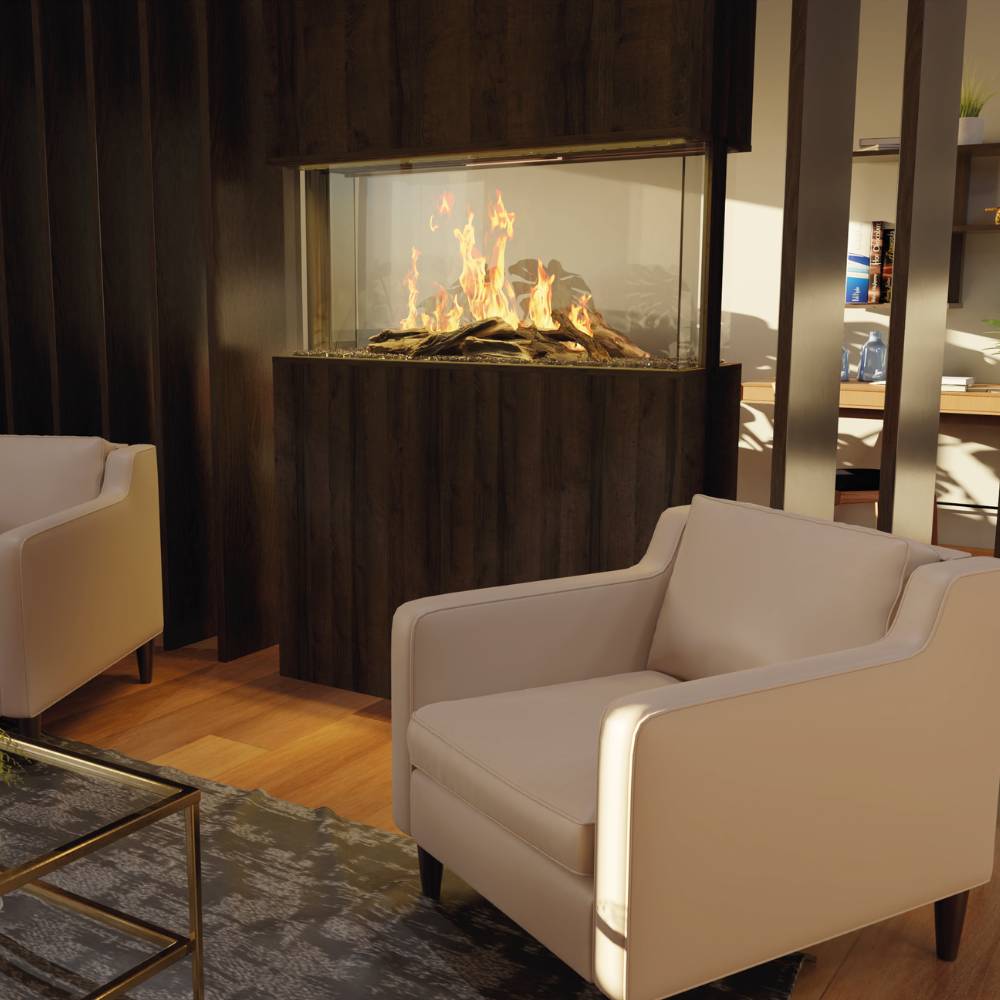

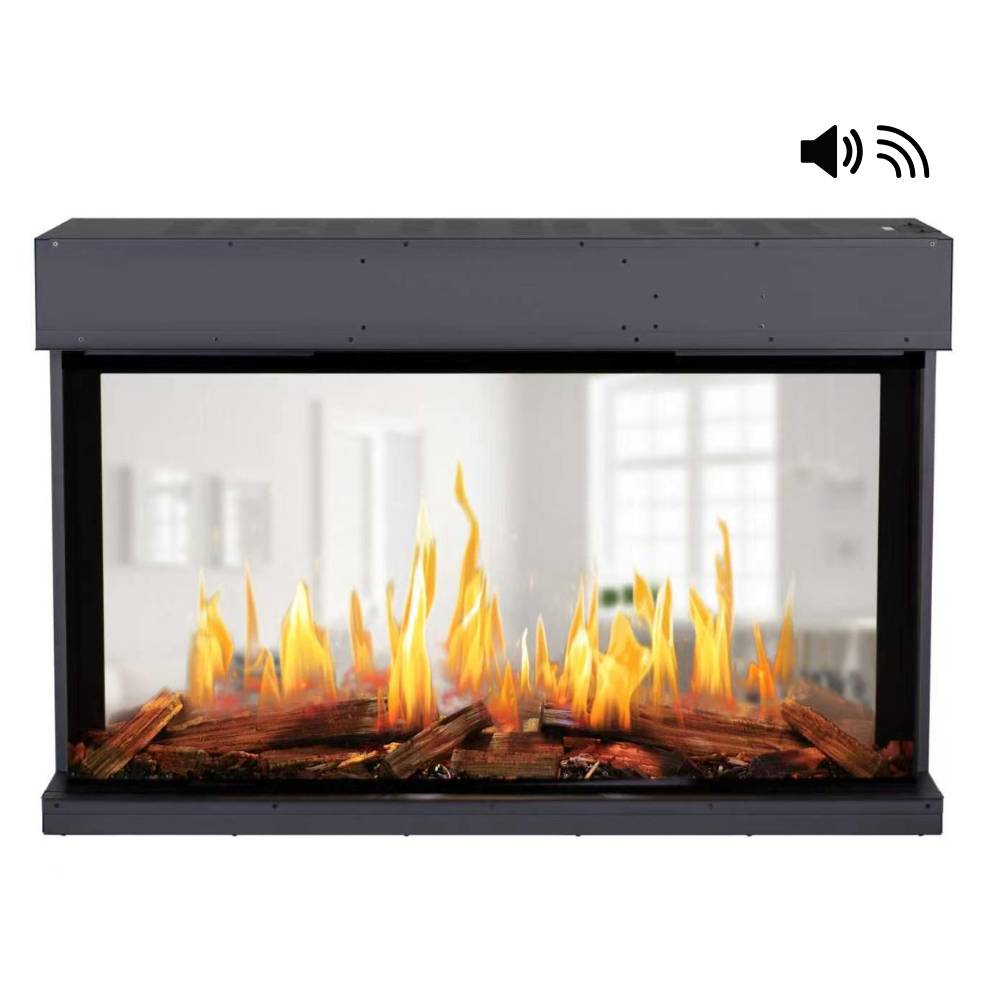

Experience the future of fireplaces with the new Modern Flames Nova™ Clear See-Through Electric Fireplace. Patented virtual laser flame projection produces multi-dimensional flames on glass that is more than 80% transparent — visible from both sides, making it perfect for room dividers, kitchen islands, and modern feature walls. A layered firebox with a TruWood log set, wood chips, and black crushed glass completes the strikingly realistic display.
Technical Specifications
-
Type: See-Through Built-In Laser Projection Electric Fireplace
-
Fuel Type: Electric
-
Width: 49-7/16"
-
Height: 31-15/16"
-
Depth: 18-1/8"
-
Viewing Area: 45-13/16" W x 22-7/16" H
-
BTU Output: 4,100 BTU @ 120V / 8,200 BTU @ 240V
-
Watts: 1,200W @ 120V / 2,400W @ 240V (hardwire)
-
Voltage: 120V / 240V
-
Amp Rating: 15A (20A preferred)
-
Heating Coverage: Up to 800 sq. ft.
-
Mounting Type: Built-in, see-through (two-sided)
-
Remote Control: Yes (remote included)
-
Certification: CSA
-
Location: Indoor
-
Item Weight: 106 lb

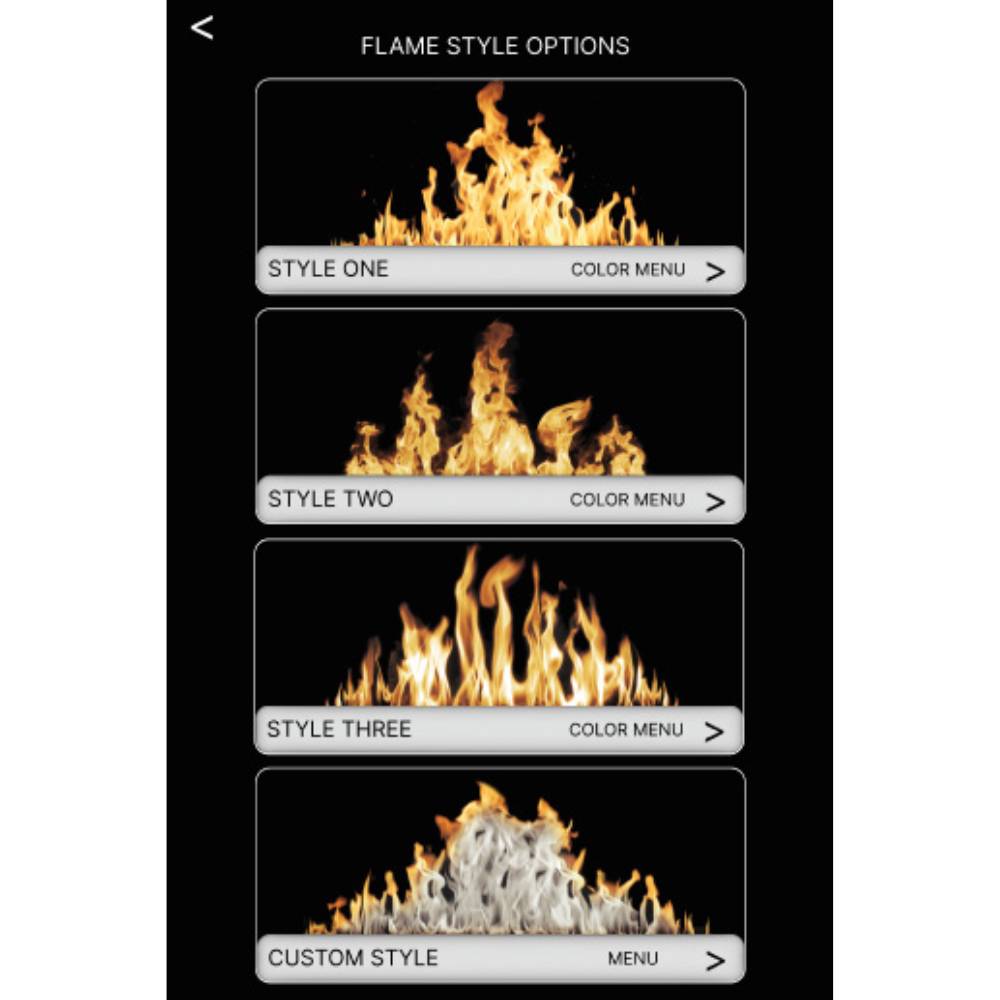

Nova Clear's patented virtual laser flame projection creates multi-dimensional flames over an internally layered firebox with a real TruWood log set, wood chips, and black crushed glass. Choose from 4 flame styles (Wood Burning, Gas, Hybrid, Custom) in 6 colors with 3 flame speeds, plus a customizable ember bed and downlighting. With the flame off, the fireplace becomes a transparent media display: an internal cavity houses your streaming device with an HDMI input and USB-C/USB-A power.
Premium Dolby® Audio speakers deliver 3 soundscapes (Normal Crackling, Starry Night, Stormy Night) plus Bluetooth audio streaming. Control it all from the Modern Flames app, the included remote, integrated touch controls, or Alexa/Google Home — with an 8-hour timer. The dual-zone heater warms the front, back, or both sides: 1,200W/4,100 BTU @ 120V or 2,400W/8,200 BTU @ 240V hardwire, covering up to 800 sq. ft.
Key Features
- Patented virtual laser flame projection on >80% transparent glass, visible from both sides
- Perfect for room dividers, kitchen islands, and modern feature walls
- Layered firebox with TruWood log set, wood chips, and black crushed glass
- Transparent media display mode: internal streaming-device cavity with HDMI input and USB-C/USB-A power
- Premium Dolby® Audio with Bluetooth streaming and 3 soundscapes (Normal Crackling, Starry Night, Stormy Night)
- 4 flame styles (Wood Burning, Gas, Hybrid, Custom) x 6 colors, 3 speeds, customizable ember bed and downlighting
- Modern Flames app, remote, touch controls, Alexa/Google Home, 8-hour timer
- Dual-zone heater (front/back/both): 4,100 BTU @ 120V / 8,200 BTU @ 240V for up to 800 sq. ft.
- Includes TruWood log set, black crushed glass, and remote control
5-Year Warranty
CSA Certified
