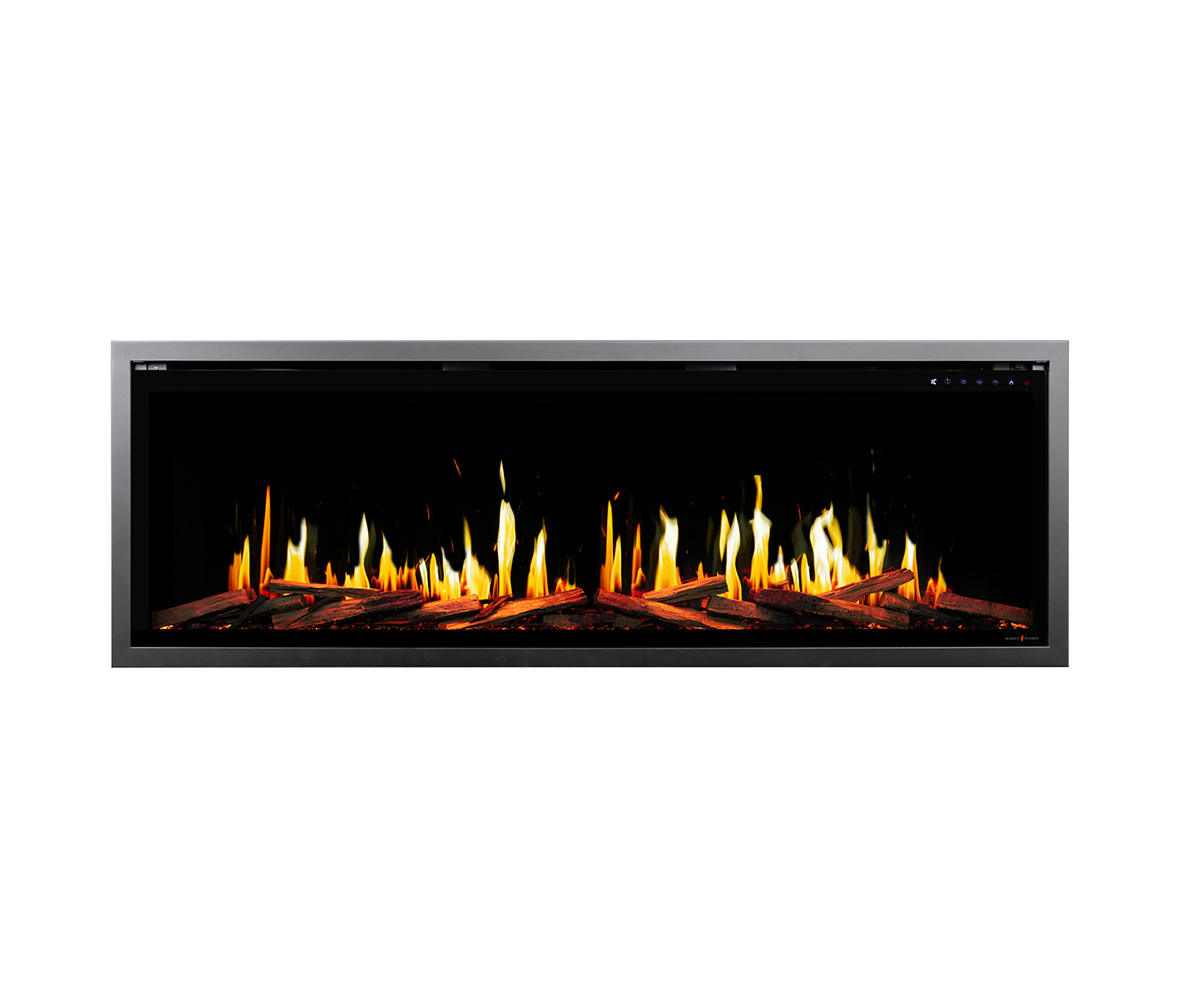

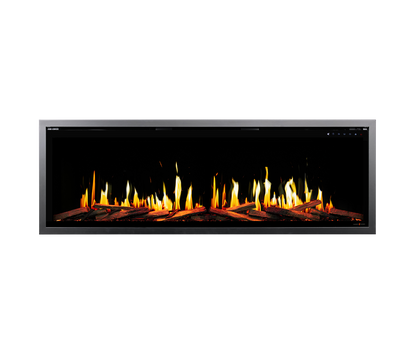

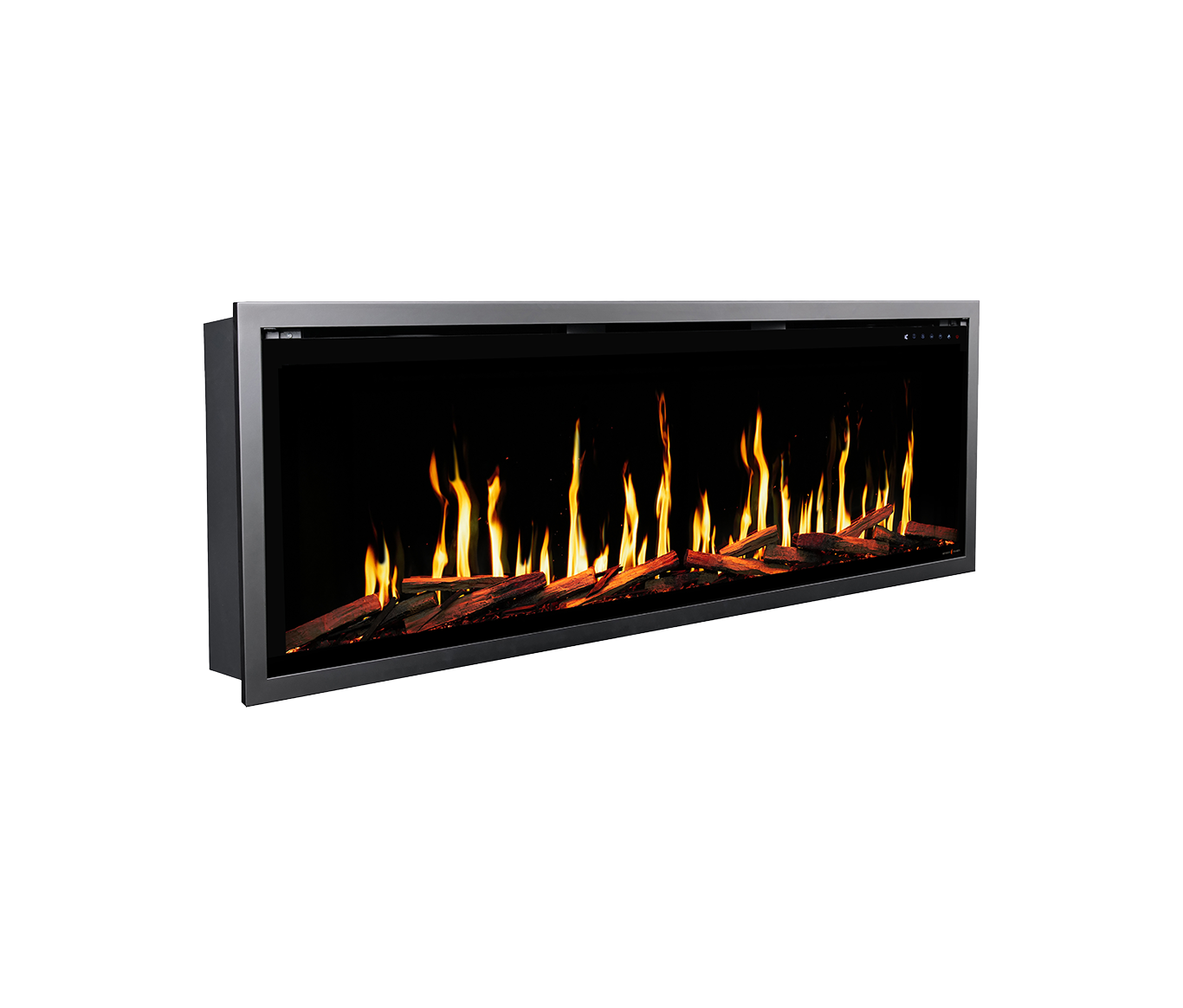

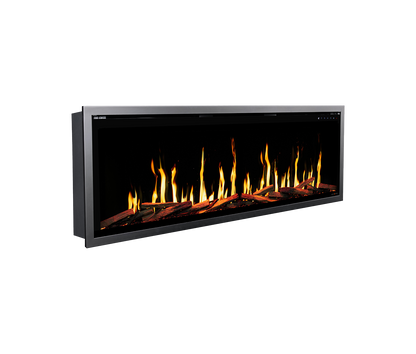

The Modern Flames Orion V2 100" Slim Linear LCD Electric Fireplace brings the full Orion V2 experience to a slim, single-sided profile that recesses completely into a standard 2x6 wall. Advanced HELIOVISION™ multi-dimensional virtual flame technology, immersive audio, layered lighting, and a lifelike lit log set create a remarkably realistic fireside experience — indoor & outdoor rated.
Technical Specifications
-
Type: Single-Sided Built-In / Wall Mount Slim Linear Electric Fireplace
-
Fuel Type: Electric
-
Width: 101"
-
Height: 19-5/8"
-
Depth: 6-5/16"
-
Viewing Area: 15" H viewing height
-
BTU Output: 5,000 BTU
-
Watts: 1,465W @ 120V
-
Voltage: 120V (plug-in or hardwired)
-
Amp Rating: Dedicated 20A circuit
-
Heating Coverage: Up to 400 sq. ft.
-
Mounting Type: Fully recessed built-in (clean face or self-trimming) in a standard 2x6 wall, or wall mount
-
Remote Control: Yes (multi-function remote included)
-
Certification: UL / CSA Listed
-
Location: Indoor & Outdoor
HELIOVISION™ flame technology on a next-generation LCD display delivers sharper contrast, deeper blacks, and automatic day/night adaptive brightness. Choose from 24 flame options, 6 flame colors, customizable ember bed and downlighting, and 3 flame speeds — all layered over an internally lit real split-wood TruWood log set and black reflective crushed glass. Premium speakers add 3 crackling soundscapes plus Bluetooth audio streaming.
As a connected platform, the Orion V2 keeps growing: an expanding library of flame styles, colors, and themes arrives via the Modern Flames+ app (iOS/Android), with control from the multifunction remote, integrated touch controls, Alexa/Google Home, saved experiences, an 8-hour timer, and over-the-air updates. The efficient PTC heater delivers 5,000 BTU (1,465W @ 120V) to warm up to 400 sq. ft.
Key Features
- Slim 6-5/16" profile recesses completely into a standard 2x6 wall
- HELIOVISION™ multi-dimensional virtual flame technology on next-generation LCD
- 24 flame options, 6 flame colors, 3 flame speeds with adaptive day/night brightness
- Internally lit real split-wood TruWood log set with black reflective crushed glass
- Premium speakers with 3 crackling soundscapes and Bluetooth audio streaming

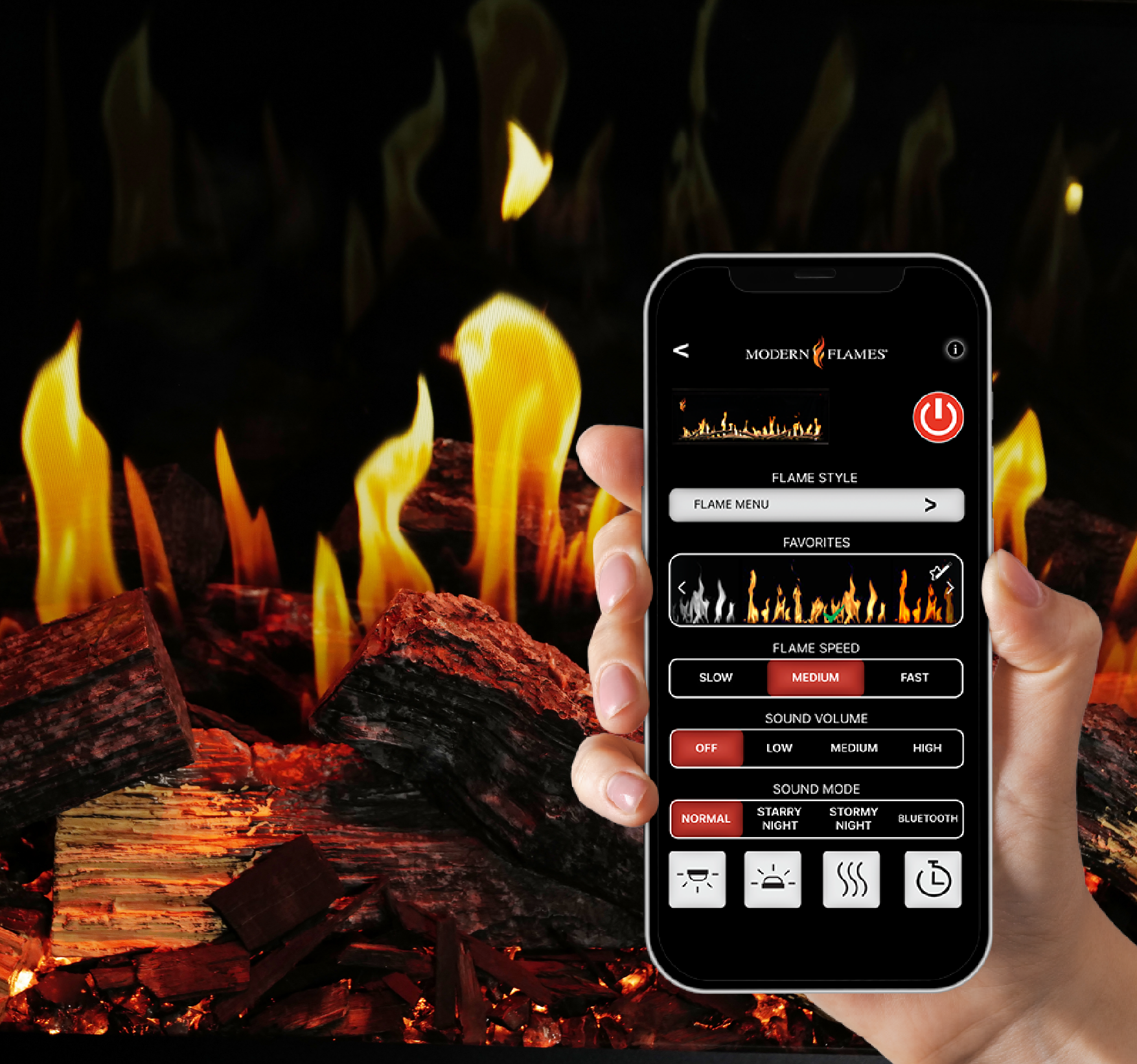

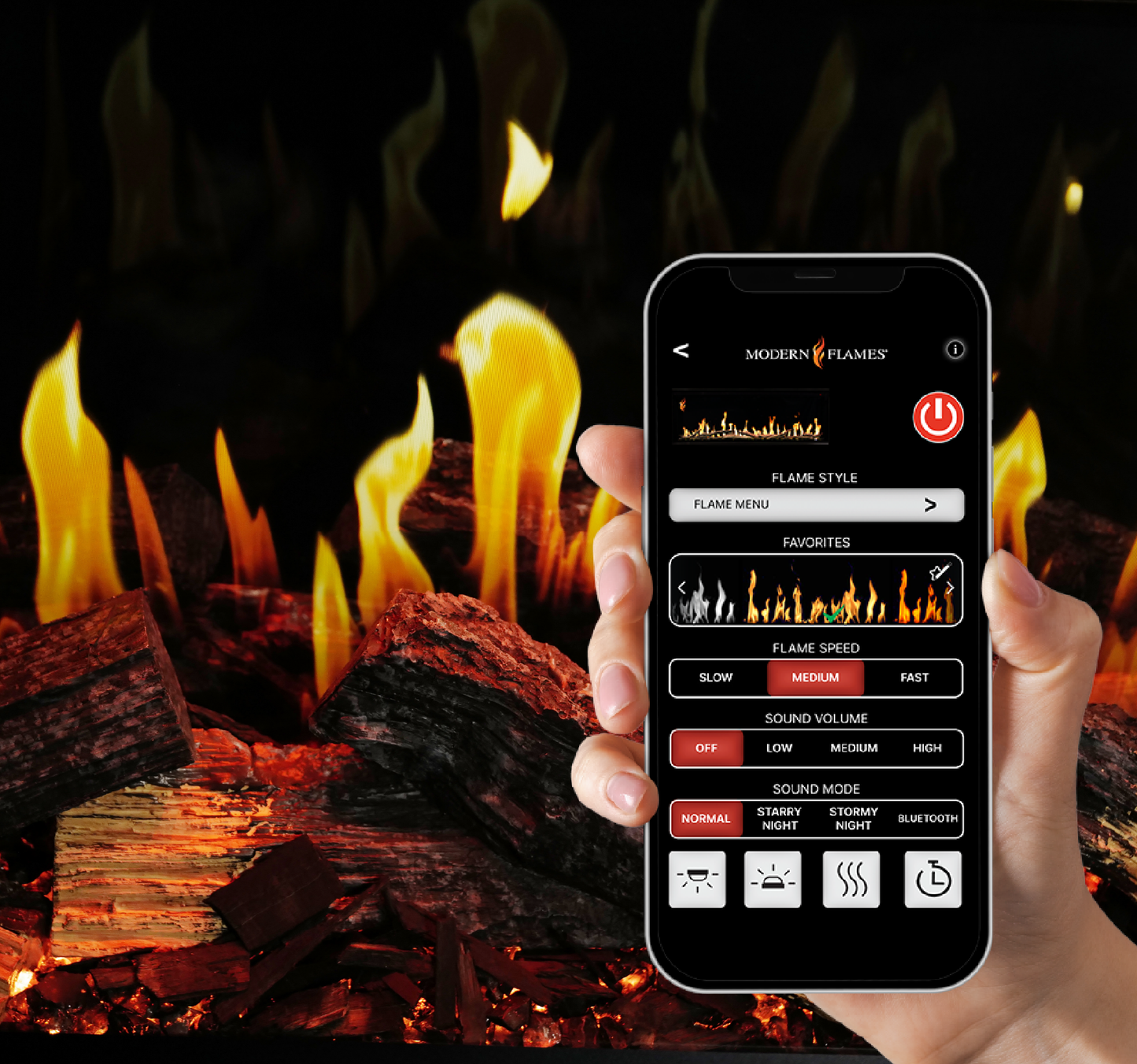

- Modern Flames+ app control (iOS/Android) with expanding style library and OTA updates
- Works with Alexa & Google Home; 8-hour timer
- Clean face built-in, self-trimming, or wall-mount installation
- PTC heater: 5,000 BTU / 1,465W @ 120V (plug-in or hardwired) for up to 400 sq. ft.
- Indoor & outdoor rated
5-Year Warranty
CSA Certified
