Modern Flames Orion V2 30" Traditional LCD Electric Fireplace

Installation Manual Here

(5 YEAR WARRANTY INCLUDED)

The Modern Flames Orion V2 30" Traditional LCD Electric Fireplace (OR30-TRAD-V2) redefines what an electric fireplace can be, transforming the virtual fireplace experience into a captivating focal point. Advanced multi-dimensional virtual flame technology, immersive audio, layered lighting, and a lifelike internally lit TruWood log set work together to create a remarkably realistic fireside experience — installed as a clean face built-in, self-trimming, or as a retrofit insert with optional surrounds.

Technical Specifications

• Type: Built-In / Insert Virtual LCD Electric Fireplace
• Fuel Type: Electric
• Width: 30 1/2"
• Height: 19 5/8"
• Depth: 9 7/8"
• Viewing Area: 27 5/8" W x 17 1/16" H
• BTU Output: 5,000 BTU
• Watts: 1,465W
• Voltage: 120V
• Heating Coverage: Up to 400 sq. ft.
• Mounting Type: Built-In Clean Face (Self-Trimming) / Retrofit Insert
• Remote Control: Included (plus touch, Modern Flames+ app, Alexa & Google Home)
• Certification: UL / CSA
• Location: Indoor

Next-generation HELIOVISION™ flame technology runs on an all-new LCD platform with sharper contrasts, deep blacks, and adaptive day/night brightness. Choose from 24 flame options — and a growing library of flame styles, colors, and themes delivered through the Modern Flames+ app (iOS/Android) with free over-the-air updates. A real-wood, internally illuminated TruWood log set rests on an active ember bed with black crushed glass, while premium speakers deliver three immersive fireside soundscapes and double as a Bluetooth audio speaker.

The integrated 5,000 BTU (1,465W / 120V) PTC heater warms rooms up to 400 sq. ft. Control everything via the Modern Flames+ app, included remote, onboard touch controls, or hands-free with Alexa and Google Home, and set the built-in 8-hour timer for worry-free operation.

Key Features

• HELIOVISION™ virtual flames on a next-generation LCD platform — sharper contrast, deep blacks, adaptive day/night brightness

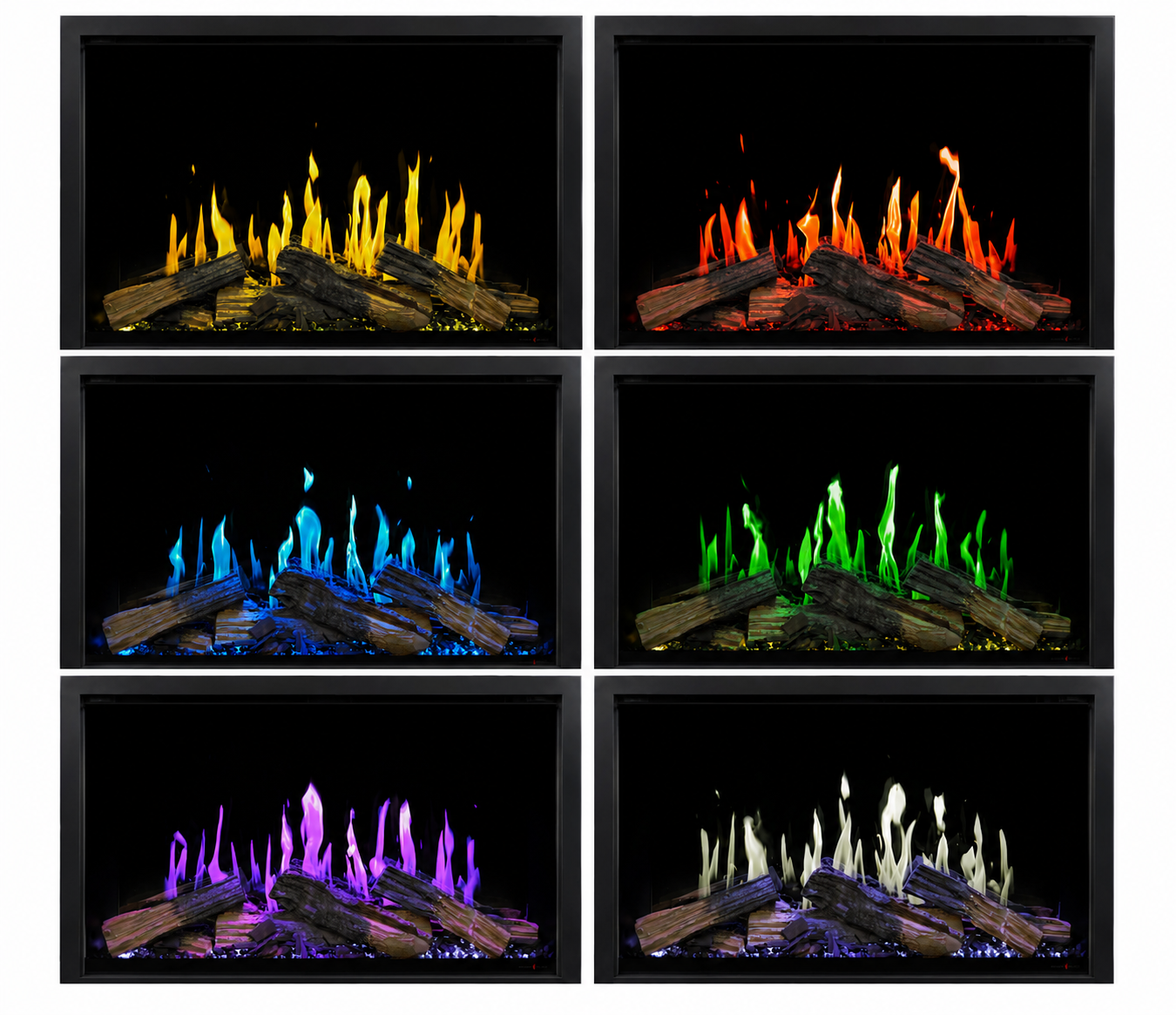

• 24 flame style, color & theme options with a growing downloadable library
• Real-wood TruWood log set, internally lit, over an active ember bed with black crushed glass
• Premium speakers with 3 fireside soundscapes + Bluetooth audio streaming
• Modern Flames+ app (iOS/Android), remote, touch controls, Alexa & Google Home
• 8-hour timer & free over-the-air updates
• 5,000 BTU / 1,465W PTC heater for up to 400 sq. ft.

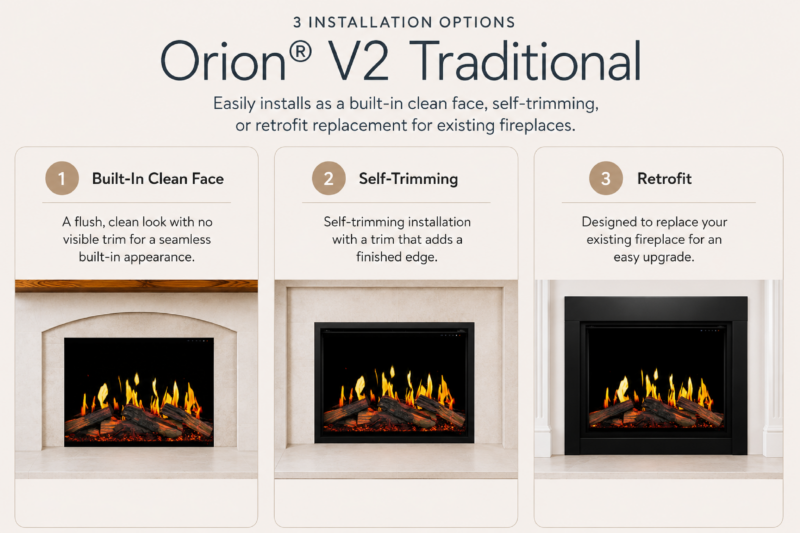

• Clean face self-trimming built-in or retrofit insert installation (optional surrounds available)

5-Year Warranty

UL / CSA Certified
