Installation Manual Here
(5 YEAR WARRANTY INCLUDED)

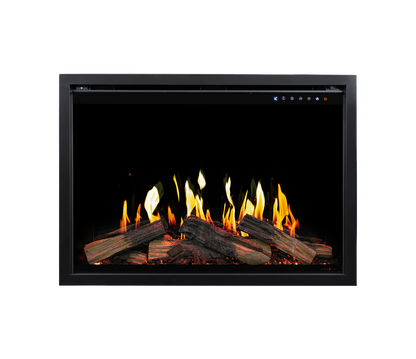

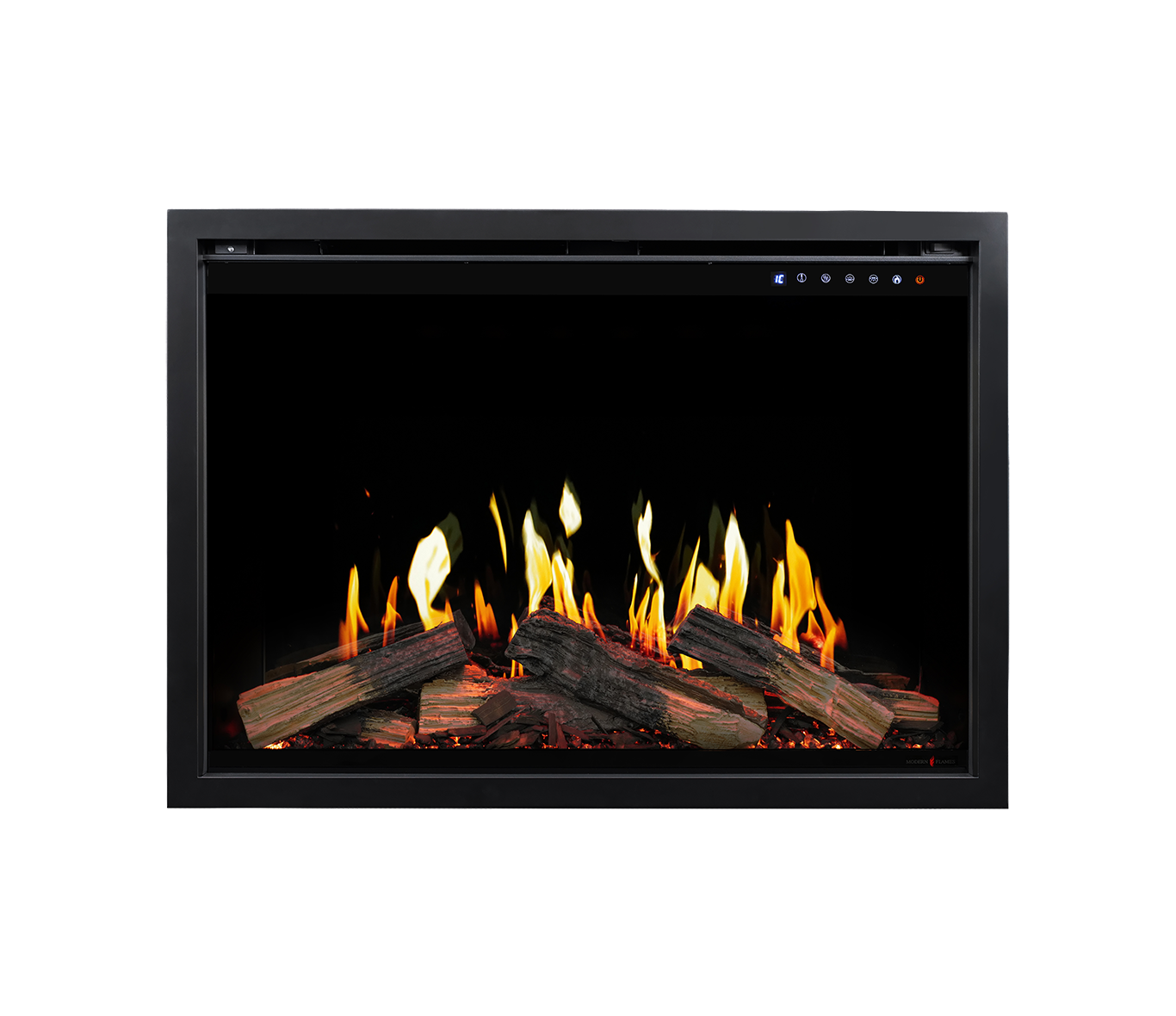

The Modern Flames Orion V2 42" Traditional LCD Electric Fireplace (OR42-TRAD-V2) redefines what an electric fireplace can be, transforming the virtual fireplace experience into a captivating focal point. Advanced multi-dimensional virtual flame technology, immersive audio, layered lighting, and a lifelike internally lit TruWood log set work together to create a remarkably realistic fireside experience — installed as a clean face built-in, self-trimming, or as a retrofit insert with optional surrounds.
Technical Specifications
-
Type: Built-In / Insert Virtual LCD Electric Fireplace
-
Fuel Type: Electric
-
Width: 41"
-
Height: 27 13/16"
-
Depth: 9 7/8"
-
Viewing Area: 38 1/8" W x 25 1/4" H
-
BTU Output: 5,000 BTU (120V) | 8,300 BTU (240V)
-
Watts: 1,465W (120V) | 2,500W (240V)
-
Voltage: 120V / 240V capable
-
Heating Coverage: Up to 400 sq. ft. (700 - 800 sq. ft. @ 240V)
-

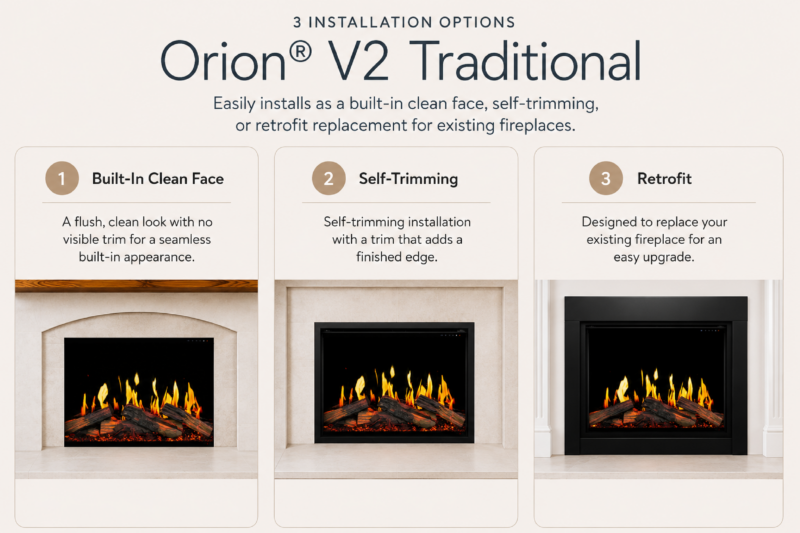

Mounting Type: Built-In Clean Face (Self-Trimming) / Retrofit Insert
-
Remote Control: Included (plus touch, Modern Flames+ app, Alexa & Google Home)
-
Certification: UL / CSA
-
Location: Indoor
Next-generation HELIOVISION™ flame technology runs on an all-new LCD platform with sharper contrasts, deep blacks, and adaptive day/night brightness. Choose from 24 flame options — and a growing library of flame styles, colors, and themes delivered through the Modern Flames+ app (iOS/Android) with free over-the-air updates. A real-wood, internally illuminated TruWood log set rests on an active ember bed with black crushed glass, while premium speakers deliver three immersive fireside soundscapes and double as a Bluetooth audio speaker.
The integrated PTC heater delivers 5,000 BTU (1,465W) on 120V and can be wired for 240V to deliver 8,300 BTU (2,500W), covering 700 - 800 sq. ft. Control everything via the Modern Flames+ app, included remote, onboard touch controls, or hands-free with Alexa and Google Home, and set the built-in 8-hour timer for worry-free operation.
Key Features
- HELIOVISION™ virtual flames on a next-generation LCD platform — sharper contrast, deep blacks, adaptive day/night brightness

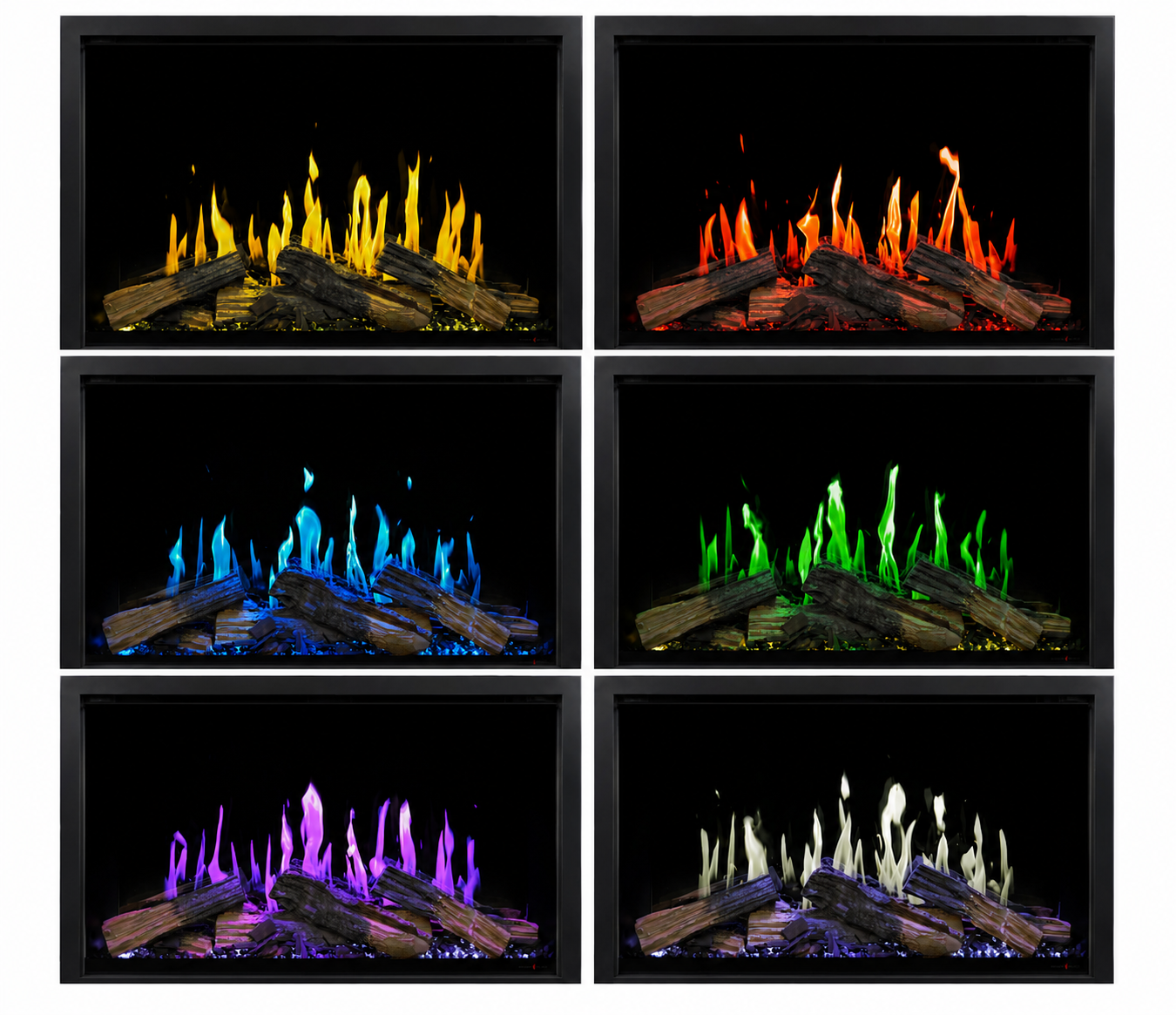

- 24 flame style, color & theme options with a growing downloadable library
- Real-wood TruWood log set, internally lit, over an active ember bed with black crushed glass
- Premium speakers with 3 fireside soundscapes + Bluetooth audio streaming
- Modern Flames+ app (iOS/Android), remote, touch controls, Alexa & Google Home
- 8-hour timer & free over-the-air updates
- Dual-voltage PTC heater: 5,000 BTU @ 120V or 8,300 BTU @ 240V
- Clean face self-trimming built-in or retrofit insert installation (optional surrounds available)
5-Year Warranty
UL / CSA Certified
