Installation Manual Here
(5 YEAR WARRANTY INCLUDED)
The Modern Flames Orion V2 60" Multi Linear LCD Electric Fireplace redefines what an electric fireplace can be, transforming the virtual fireplace experience into a captivating focal point. Advanced multi-dimensional virtual flame technology, immersive audio, layered lighting, and a lifelike lit log set work together to create a remarkably realistic fireside experience. Indoor & outdoor rated, it installs as a 1-, 2-, or 3-sided built-in or as a wall-mount showpiece.
Technical Specifications
-
Type: Multi-Sided Built-In / Wall Mount Linear Electric Fireplace
-
Fuel Type: Electric
-
Width: 60"
-
Height: 24-5/16"
-
Depth: 9-9/16"
-
Viewing Area: 58-5/8" W x 18-7/16" H
-
BTU Output: 5,000 BTU @ 120V / 10,000 BTU @ 240V
-
Watts: 1,465W @ 120V / 2,930W @ 240V
-
Voltage: 120V / 240V (hardwired)
-
Amp Rating: Dedicated 20A circuit
-
Heating Coverage: 500 - 800 sq. ft.
-

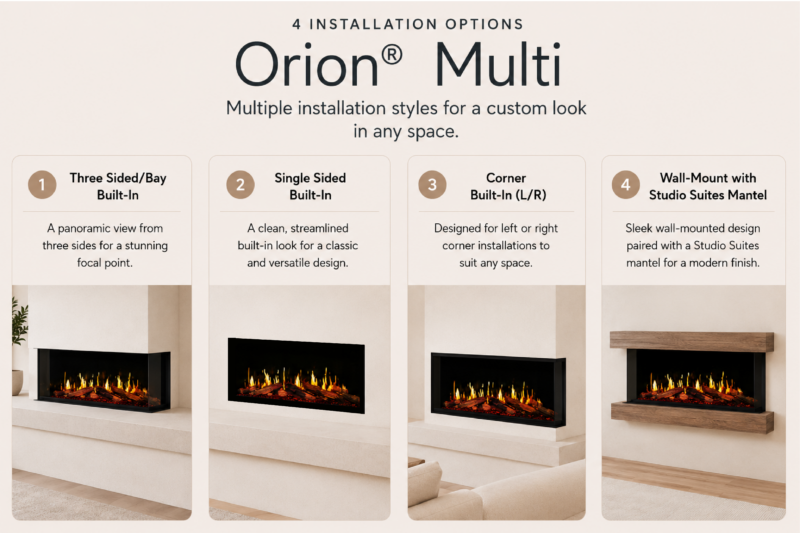

Mounting Type: Built-in 1-sided, 2-sided (left/right corner), 3-sided (bay), or wall mount (1.5" off wall / Studio Suite mantel)
-
Remote Control: Yes (multi-function remote included)
-
Certification: UL / CSA Listed
-
Location: Indoor & Outdoor
HELIOVISION™ flame technology on a next-generation LCD display delivers sharper contrast, deeper blacks, and automatic day/night adaptive brightness. Choose from 24 flame options across wood, gas, and hybrid patterns, 6 flame colors, a 10-color ember bed with fade effects, multicolor downlighting, and 3 flame speeds — all layered over an internally lit real split-wood TruWood log set and black reflective crushed glass. Premium speakers add 3 crackling soundscapes plus Bluetooth audio streaming.
As a connected platform, the Orion V2 keeps growing: an expanding library of flame styles, colors, and themes arrives via the Modern Flames+ app (iOS/Android), with control from the multifunction remote, integrated touch controls, Alexa/Google Home, up to 6 saved experiences, an 8-hour timer, and over-the-air updates. The efficient PTC heater delivers 5,000 BTU @ 120V or 10,000 BTU @ 240V to comfortably warm 500-800 sq. ft.
Key Features
- HELIOVISION™ multi-dimensional virtual flame technology on next-generation LCD

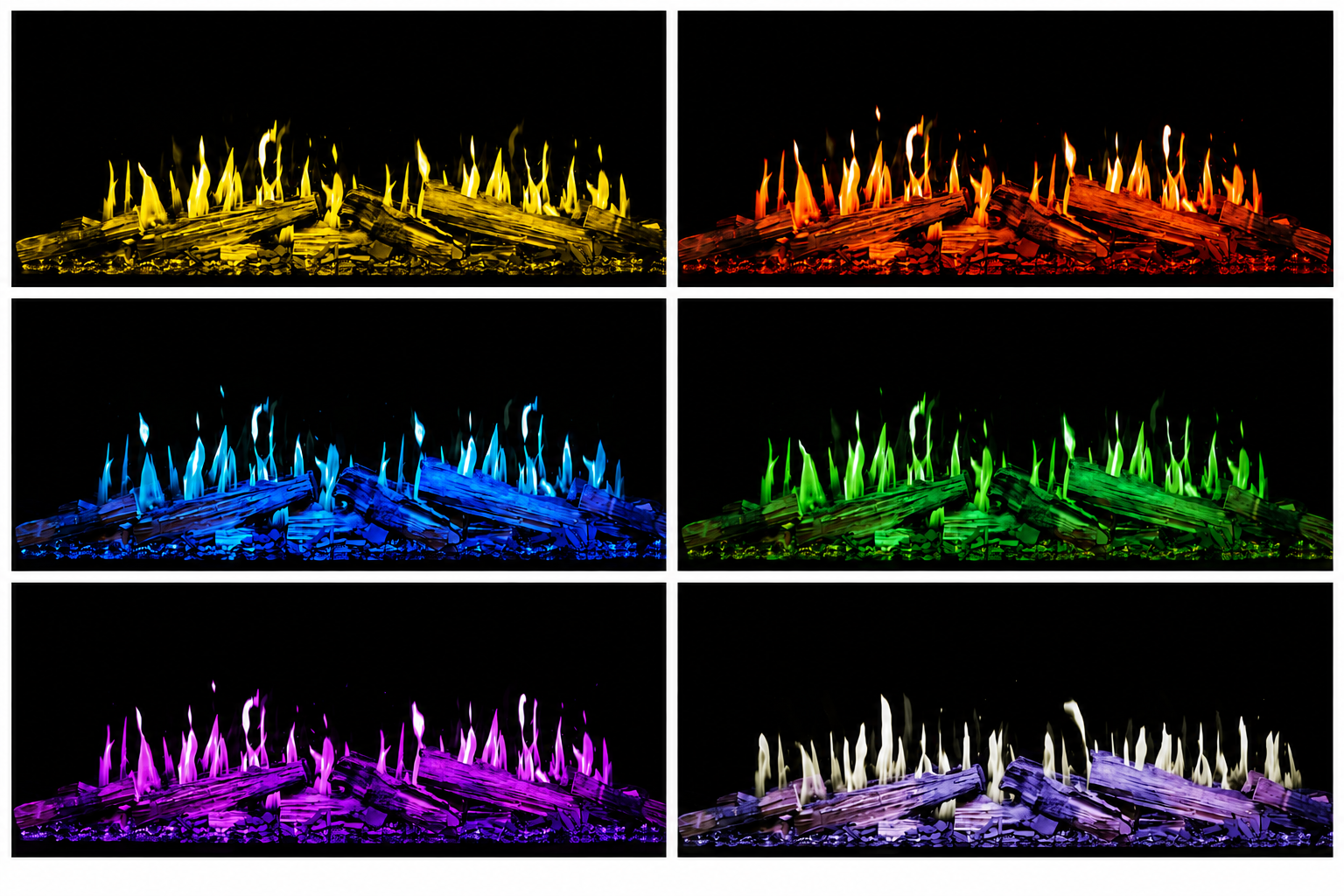

- 24 flame options (wood, gas & hybrid patterns), 6 flame colors, 3 flame speeds
- 10-color ember bed with fade effect and multicolor downlighting
- Internally lit real split-wood TruWood log set with black reflective crushed glass
- Premium speakers with 3 crackling soundscapes and Bluetooth audio streaming
- Modern Flames+ app control (iOS/Android) with expanding style library and OTA updates
- Works with Alexa & Google Home; up to 6 saved experiences; 8-hour timer
- Flexible installation: 1-sided, 2-sided corner, or 3-sided bay built-in, or wall mount
- PTC heater: 5,000 BTU @ 120V / 10,000 BTU @ 240V for 500-800 sq. ft.
- Indoor & outdoor rated
5-Year Warranty
CSA Certified
