Slick Rock Concrete Cascade Conical Fire on Glass Water Bowl

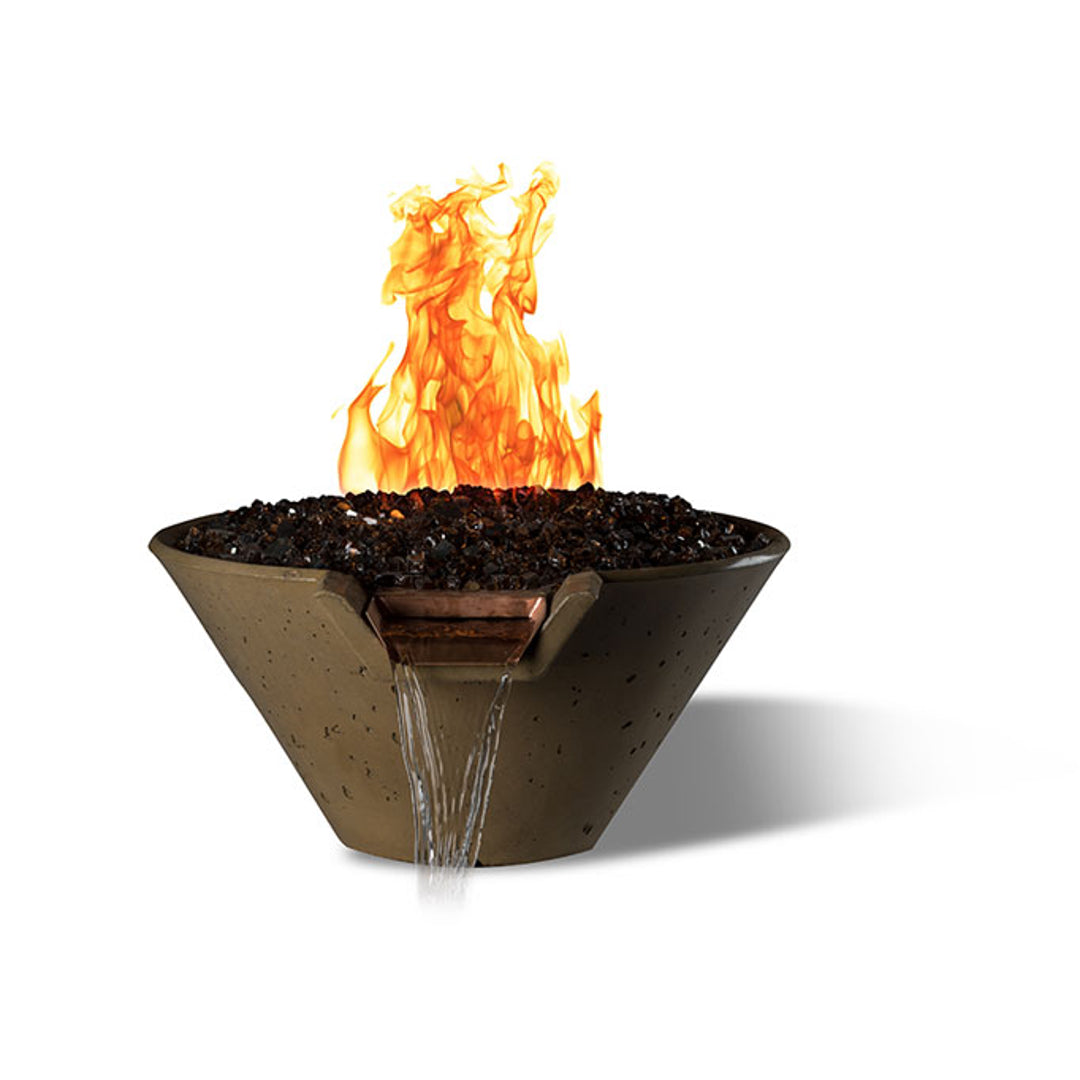

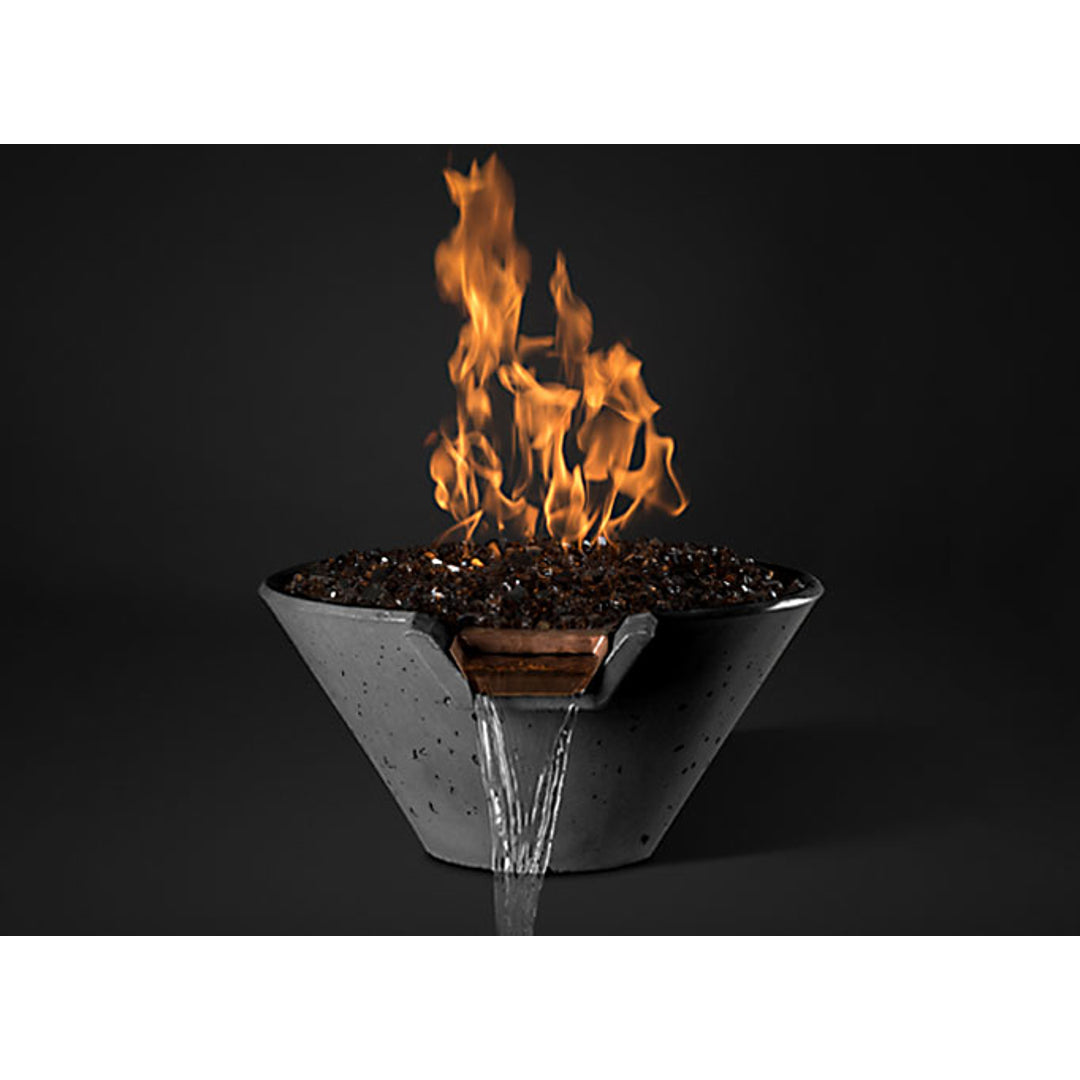

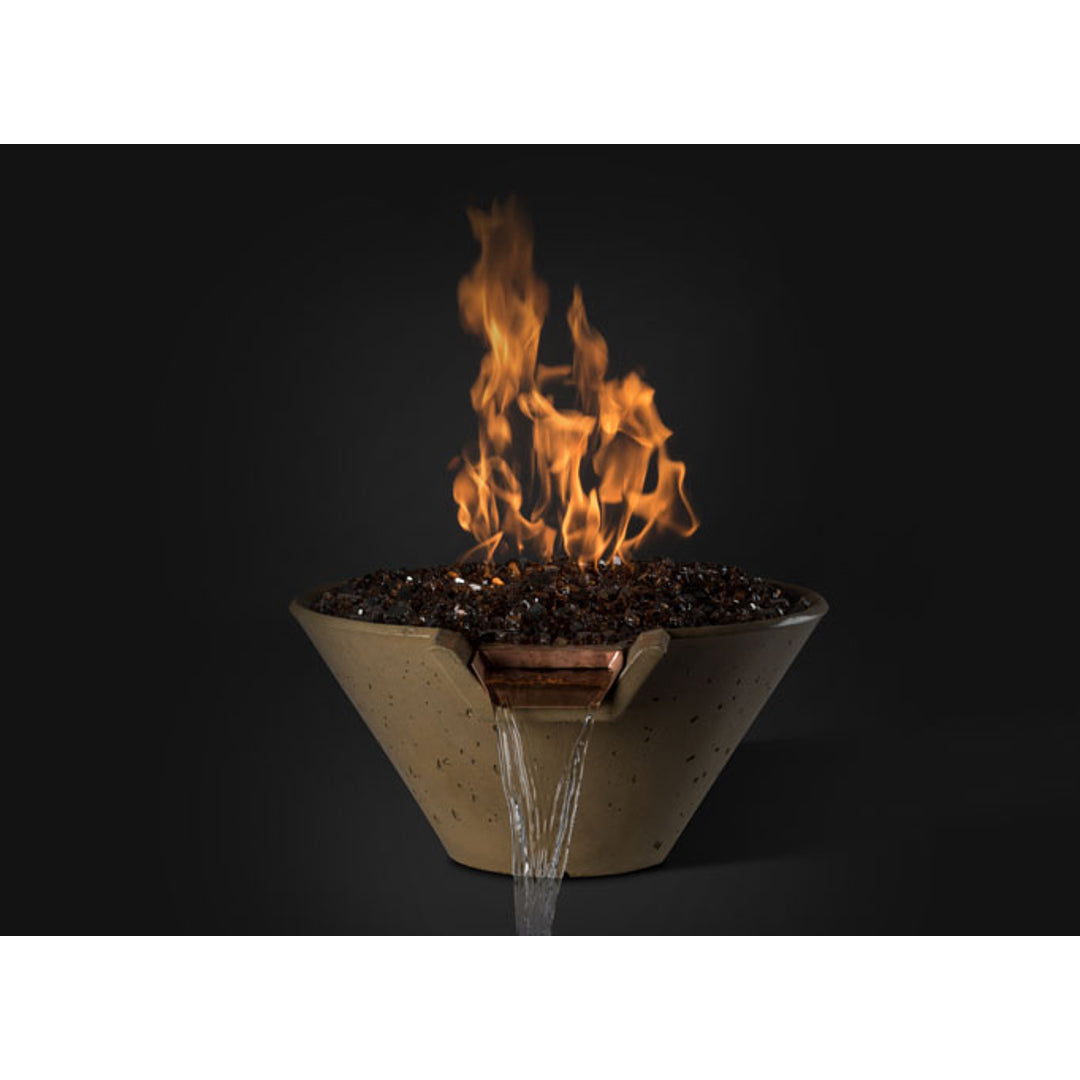

Fire and water in one vessel. On the Cascade Conical Fire on Glass Water Bowl the flame burns on a bed of fire glass in a stainless media pan while the water bypasses the fire components through a plumbed copper scupper and spills into the pool below. Available match lit or with the AWEIS all-weather electronic ignition.

Every Slick Rock Concrete piece is cast and finished by hand, so each one is unique and may carry a rich complexity of colour or shade variation.

Options:

• Size: 22", 29" or 34"
• Finish: 12 hand-stained concrete colors — Adobe, Coal Gray, Copper, Denim, Gray, Great White, Mahogany, Onyx, Rust Buff, Seafoam, Shale, Umber. Choose yours from the Color list above.
• Ignition & Fuel: Match Lit or Electronic (AWEIS 24V), each in Natural Gas or Propane

Ignition & Fuel:

• Match Lit — the simple system: stainless steel burner ring, 1/2" NPT supply and a key valve. No electricity, nothing to wire. Light it with a match wand and set the flame with the key. 200,000–300,000 BTU/hr.
• Electronic (AWEIS 24V) — Slick Rock's All-Weather Electronic Ignition System. Commercial-grade pilot burner with silicon nitride hot-surface ignition, field tested to stay lit in rain and high wind and to re-light itself after a blow-out. Starts from a switch, remote or app.
• Natural Gas or Propane — choose before you order. The burner, orifice and air mixer are built for the gas you pick, so this is not a swap you make later.

What ships with the electronic system:

• AWEIS ignition control box, 18" pilot burner assembly, a 50VA 24V AC transformer, orifice or air mixer, and heat shield.
• The Power Source 185 (PS-30V185) 30VDC supply is the add-on used to run up to three AWEIS units from one supply, or on longer runs — ordered separately.
• Fire media is never included. See the media guide below for the right quantity.

Features:

• Cast in 15,000 psi High-Performance Concrete reinforced with micro-glass fibers (GFRC) for strength and freeze-thaw durability.
• Integral through-and-through color followed by a proprietary water-based semi-transparent stain and a solvent-based semi-gloss sealer.
• Fitted with Stainless Steel Components engineered for poolside and coastal environments with next-to-no maintenance.
• Supplied with a Copper Scupper — stainless steel scupper available on request.
• Includes the stainless steel media pan and burner assembly.
• Ships with the Water Bowl Install Kit — flange, foam gasket, washer, nut and diffuser.
• Up to 3 bowls on one Power Source 185 within 200 ft; 4 with the WiFi supply.
• Warranty: 1 year against defects in material and workmanship (structural cracking and sealer failure).
• Lead time: Made to Order · ships in 3–4 weeks.

Dimensions & Specifications:

• 22":
• Dimensions: Top: 22", Base: 8.5", Height: 10".
• Weight: 50 lbs.
• Spillway width: 4".
• Stainless Steel Burner Ring, 1/2" Gas Inlet.
• Heat Output: 31k BTU/hr (AWEIS) · up to 300k BTU/hr (Match Lit).
• Holds 20 lbs. of fire glass or lava rock.

• 29":
• Dimensions: Top: 29", Base: 12", Height: 13".
• Weight: 125 lbs.
• Spillway width: 5".
• Stainless Steel Burner Ring, 1/2" Gas Inlet.
• Heat Output: 83k BTU/hr (AWEIS) · up to 300k BTU/hr (Match Lit).
• Holds 40 lbs. of fire glass or lava rock.

• 34":
• Dimensions: Top: 34", Base: 15.5", Height: 14.5".
• Weight: 150 lbs.
• Spillway width: 6".
• Stainless Steel Burner Ring, 1/2" Gas Inlet.
• Heat Output: 83k BTU/hr (AWEIS) · up to 300k BTU/hr (Match Lit).
• Holds 40 lbs. of fire glass or lava rock.

Fire Media Guide:

• 22" — holds about 20 lbs. of fire glass or 20 lbs. of lava rock. Order the 20 lb bag.
• 29" — holds about 40 lbs. of fire glass or 40 lbs. of lava rock. Order the 40 lb bag.
• 34" — holds about 40 lbs. of fire glass or 40 lbs. of lava rock. Order the 40 lb bag.
• Keep the media no more than 2" above the burner element and never completely cover the pilot burner — both are requirements in Slick Rock's own AWEIS instructions.

Optional Add-Ons & Accessories:

• Slick Rock Fire Glass — Black, Copper, Teal or Pearl (20, 40 or 60 lbs)
• Slick Rock Black Lava Rock (20, 40 or 60 lbs)
• Power Source 185 (PS-30V185) — 30VDC supply, runs up to 3 AWEIS units within 200 ft
• Remote Control Kit — handheld fob, controls up to 4 fire features
• WiFi Remote Control Kit — Leviton app, Alexa, Google, Nest, SmartThings and IFTTT
• Concrete Propane Tank Cover — matched to all 12 finishes
• Water Bowl Install Kit (spare)
• Stainless steel scupper in place of copper

[NOTE] Installation must be completed by a licensed professional. Gas connections must be made by a technician certified by the National Fireplace Institute (N.F.I.) or local equivalent, in accordance with the manufacturer's specifications. ✓

WARNING ⚠️ Combustion by-products result in emissions that can expose you to chemicals which are known to the State of California to harm health.

For more information go to: www.P65Warnings.ca.gov.
