Slick Rock Concrete Cascade Conical Fire on Water Bowl

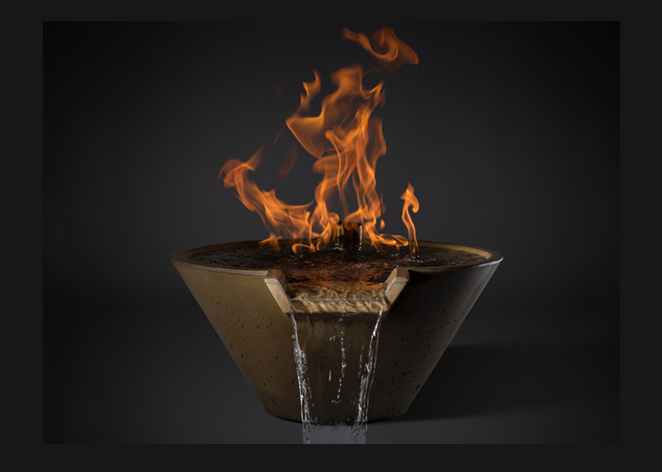

The Cascade Conical Fire on Water Bowl burns directly on the water surface. A SUBEIS submersible manifold sits below the waterline so the flame appears to float, while the bowl still spills into the pool through its scupper — the most dramatic feature Slick Rock builds.

Every Slick Rock Concrete piece is cast and finished by hand, so each one is unique and may carry a rich complexity of colour or shade variation.

Options:

• Size: 22", 29" or 34"

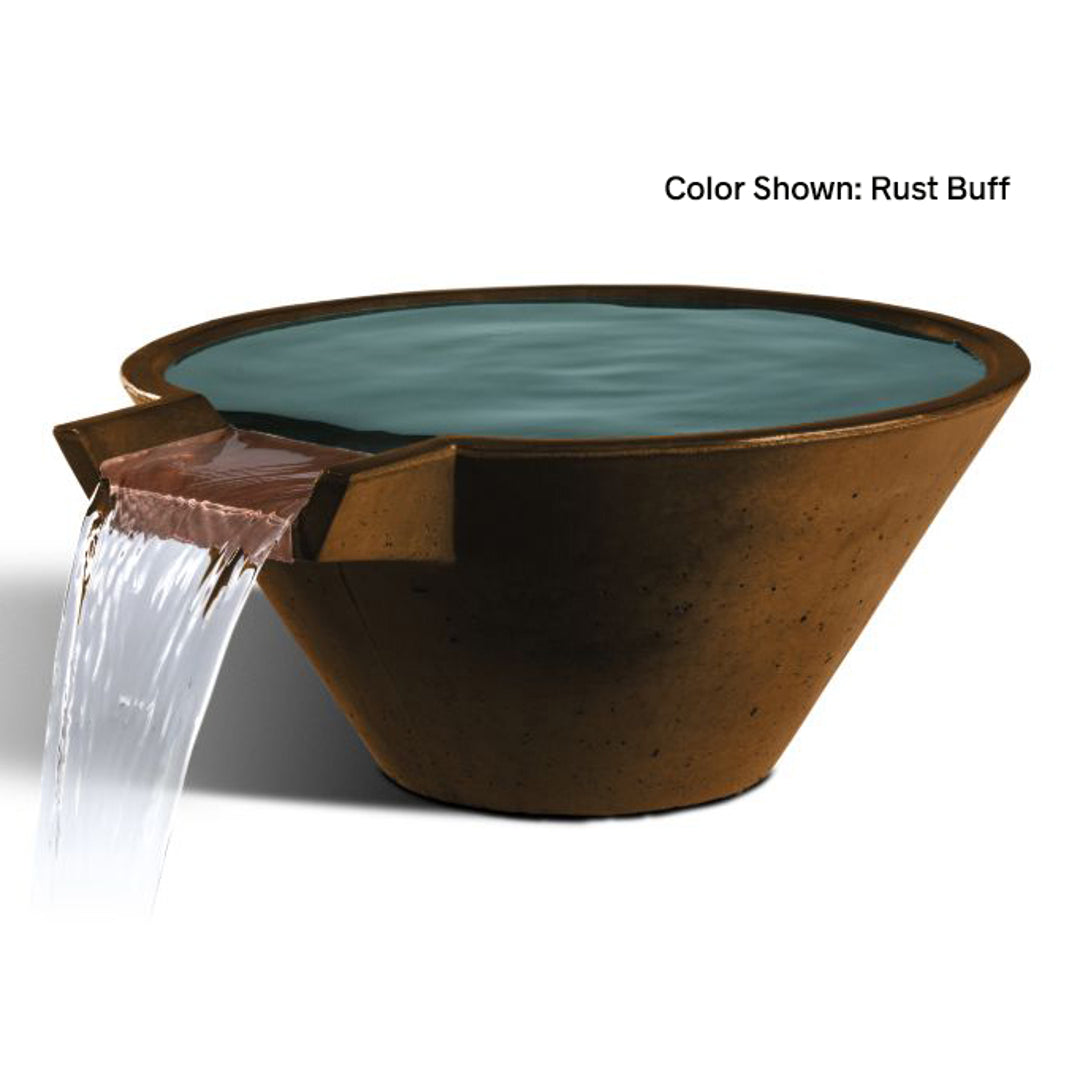

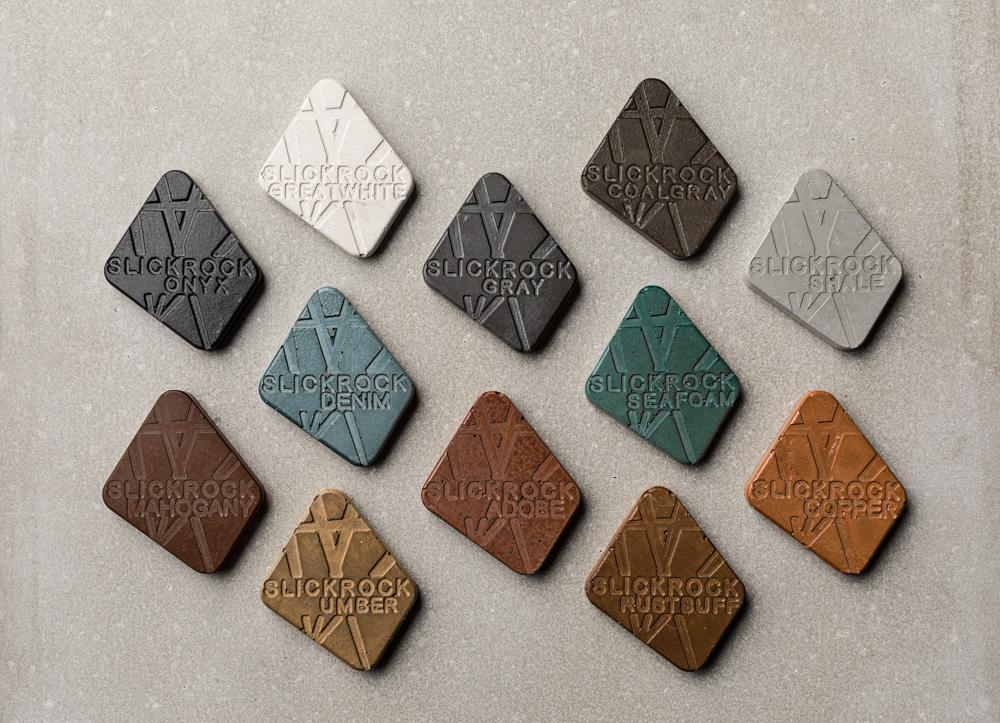

• Finish: 12 hand-stained concrete colors — Adobe, Coal Gray, Copper, Denim, Gray, Great White, Mahogany, Onyx, Rust Buff, Seafoam, Shale, Umber. Choose yours from the Color list above.
• Fuel: Natural Gas or Propane

Ignition:

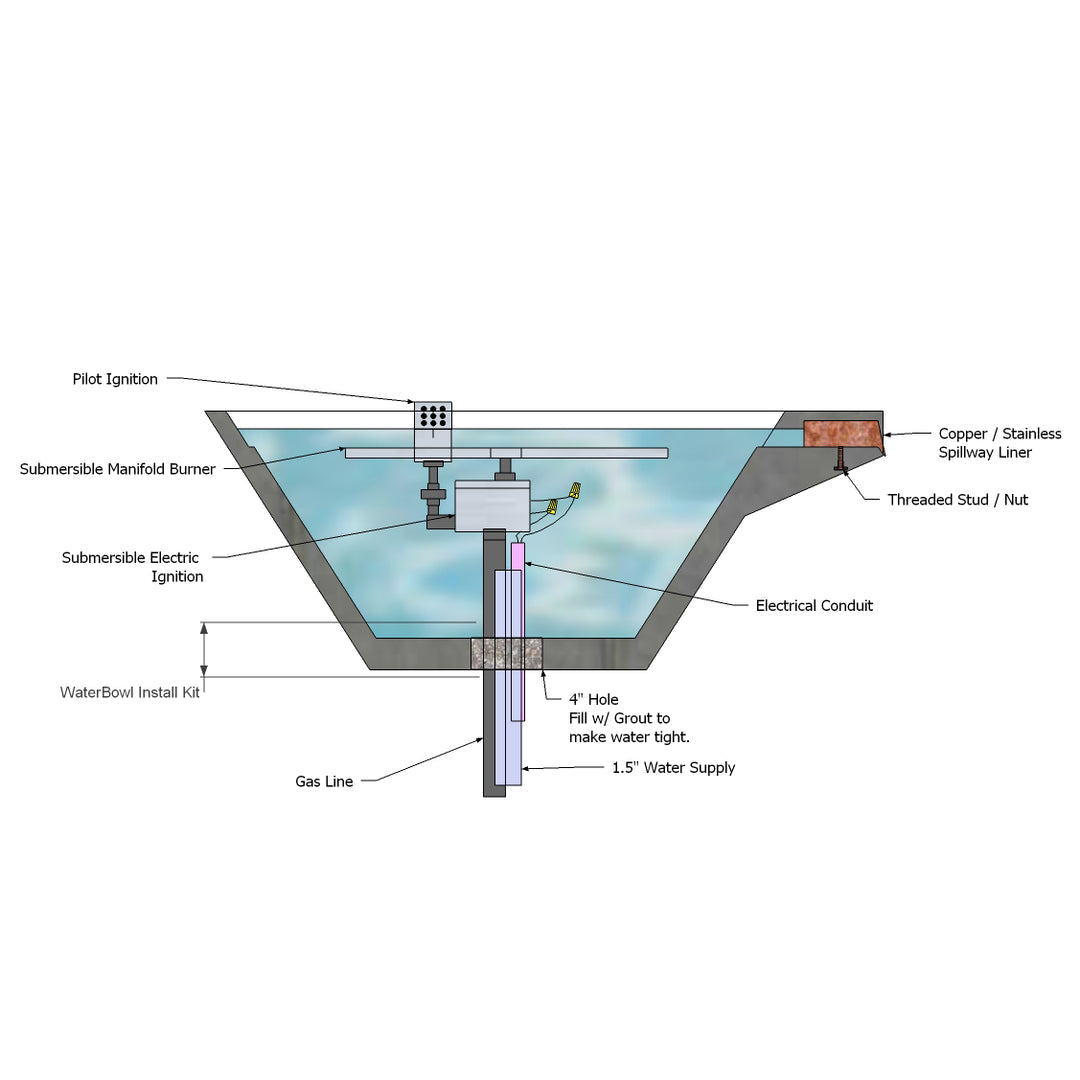

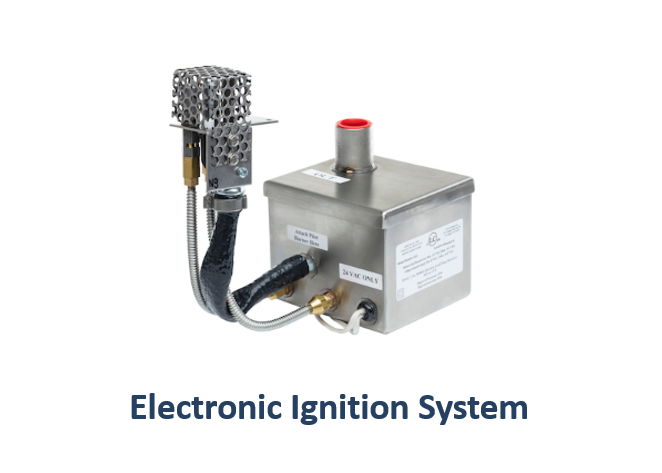

• SUBEIS 24V submersible electronic ignition — a 9" manifold that sits below the waterline so the flame appears to float on the surface. 3/8" gas inlet, up to 400,000 BTU/hr, 24 Volt AC power only — never 110V.

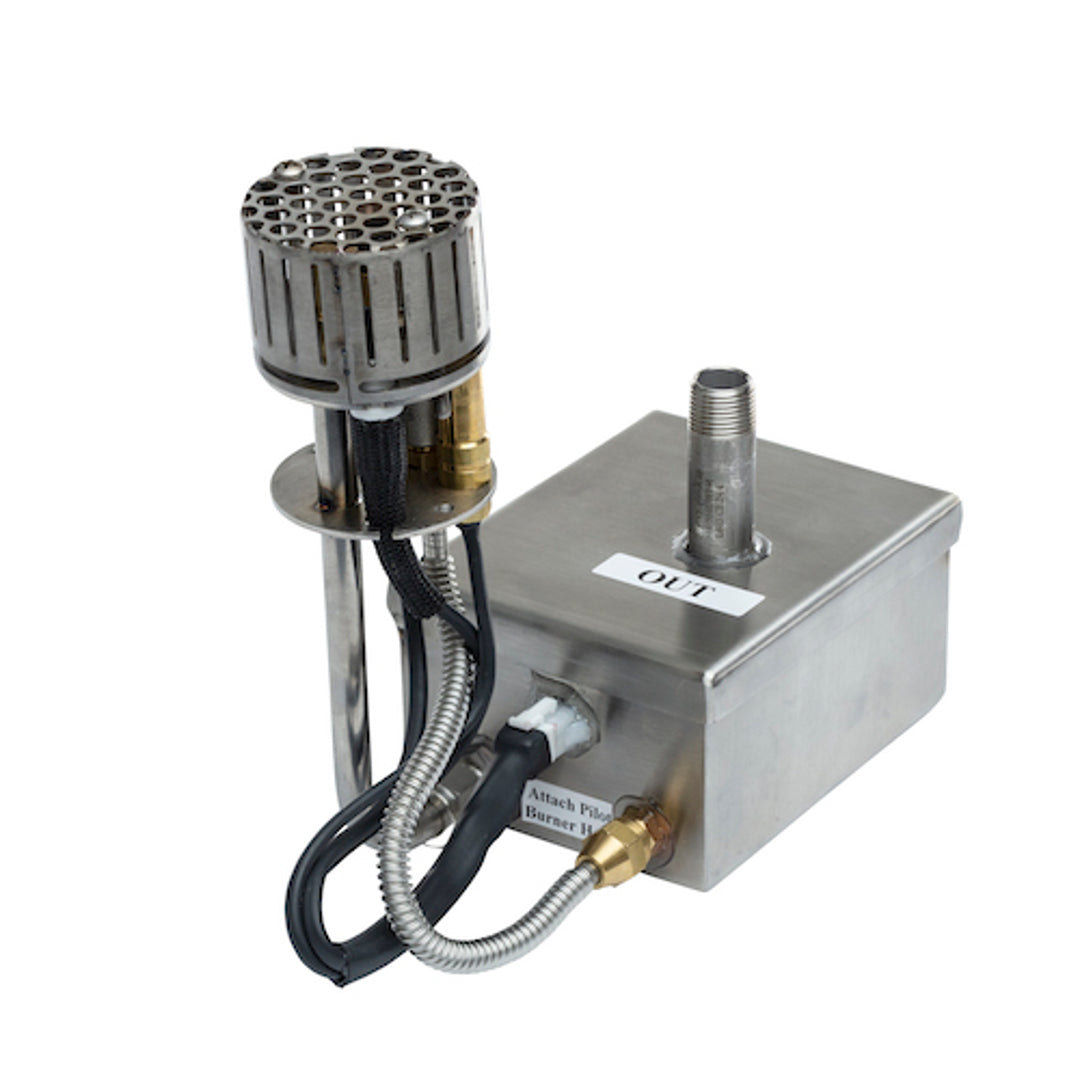

• Ships as the ignition control box plus the Fire-on-Water pilot burner assembly and install instructions.
• Water level must stay no lower than 1/2" below the bottom of the wind cage, or the pilot burner wiring will be heat damaged.
• No fire glass or lava rock is used — the flame burns on the water itself, so there is no media pan to fill.

Features:

• Cast in 15,000 psi High-Performance Concrete reinforced with micro-glass fibers (GFRC) for strength and freeze-thaw durability.
• Integral through-and-through color followed by a proprietary water-based semi-transparent stain and a solvent-based semi-gloss sealer.
• Fitted with Stainless Steel Components engineered for poolside and coastal environments with next-to-no maintenance.
• Flame burns on the water via a 9" submersible SUBEIS manifold.

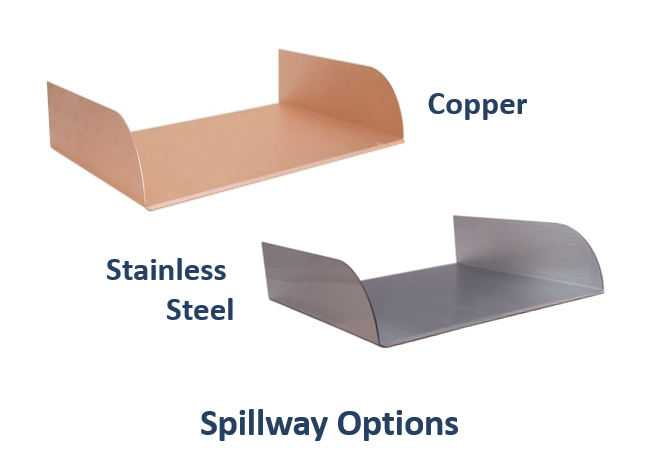

• Ships with the Water Bowl Install Kit and a copper scupper.
• 24 Volt AC power only — do not attempt to power with 110V AC.
• Warranty: 1 year against defects in material and workmanship (structural cracking and sealer failure).
• Lead time: Made to Order · ships in 3–4 weeks.

Dimensions & Specifications:

• 22":
• Dimensions: Top: 22", Base: 8.5", Height: 10".
• Weight: 50 lbs.
• Spillway width: 4".

• 29":
• Dimensions: Top: 29", Base: 12", Height: 13".
• Weight: 125 lbs.
• Spillway width: 5".

• 34":
• Dimensions: Top: 34", Base: 15.5", Height: 14.5".
• Weight: 150 lbs.
• Spillway width: 6".

Optional Add-Ons & Accessories:

• Power Source 185 (PS-30V185) — 30VDC supply for AWEIS installations
• Remote Control Kit — handheld fob
• WiFi Remote Control Kit — Leviton app
• Water Bowl Install Kit (spare)

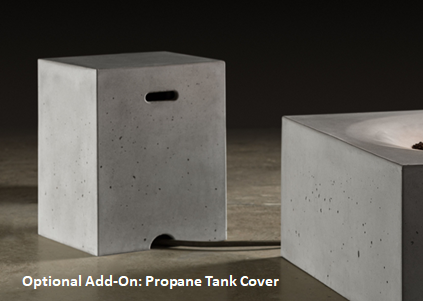

• Concrete Propane Tank Cover — matched to all 12 finishes
• No fire glass or lava rock is required — the flame burns on the water

[NOTE] Installation must be completed by a licensed professional. Gas connections must be made by a technician certified by the National Fireplace Institute (N.F.I.) or local equivalent, in accordance with the manufacturer's specifications. ✓

WARNING ⚠️ Combustion by-products result in emissions that can expose you to chemicals which are known to the State of California to harm health.

For more information go to: www.P65Warnings.ca.gov.
